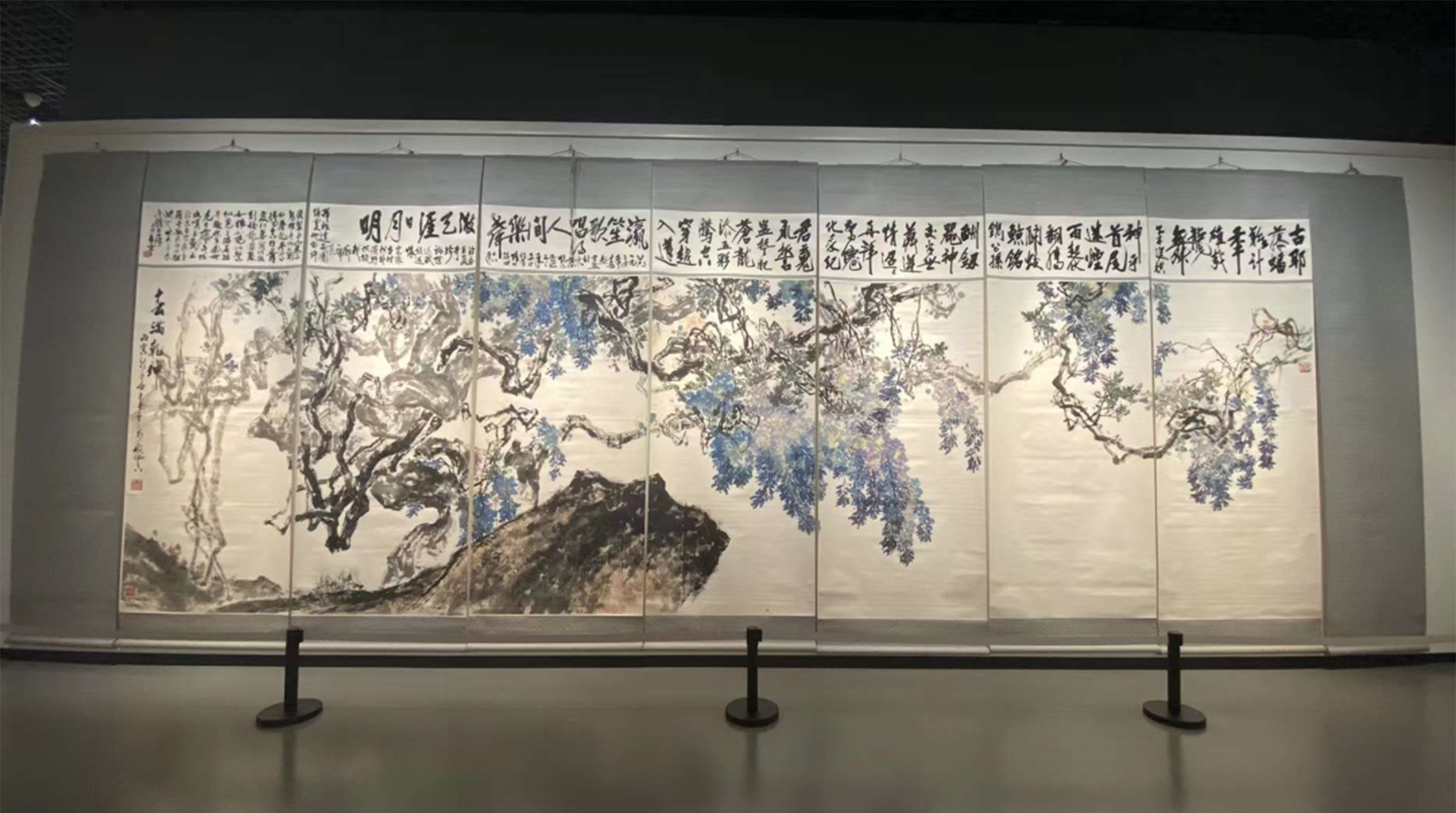

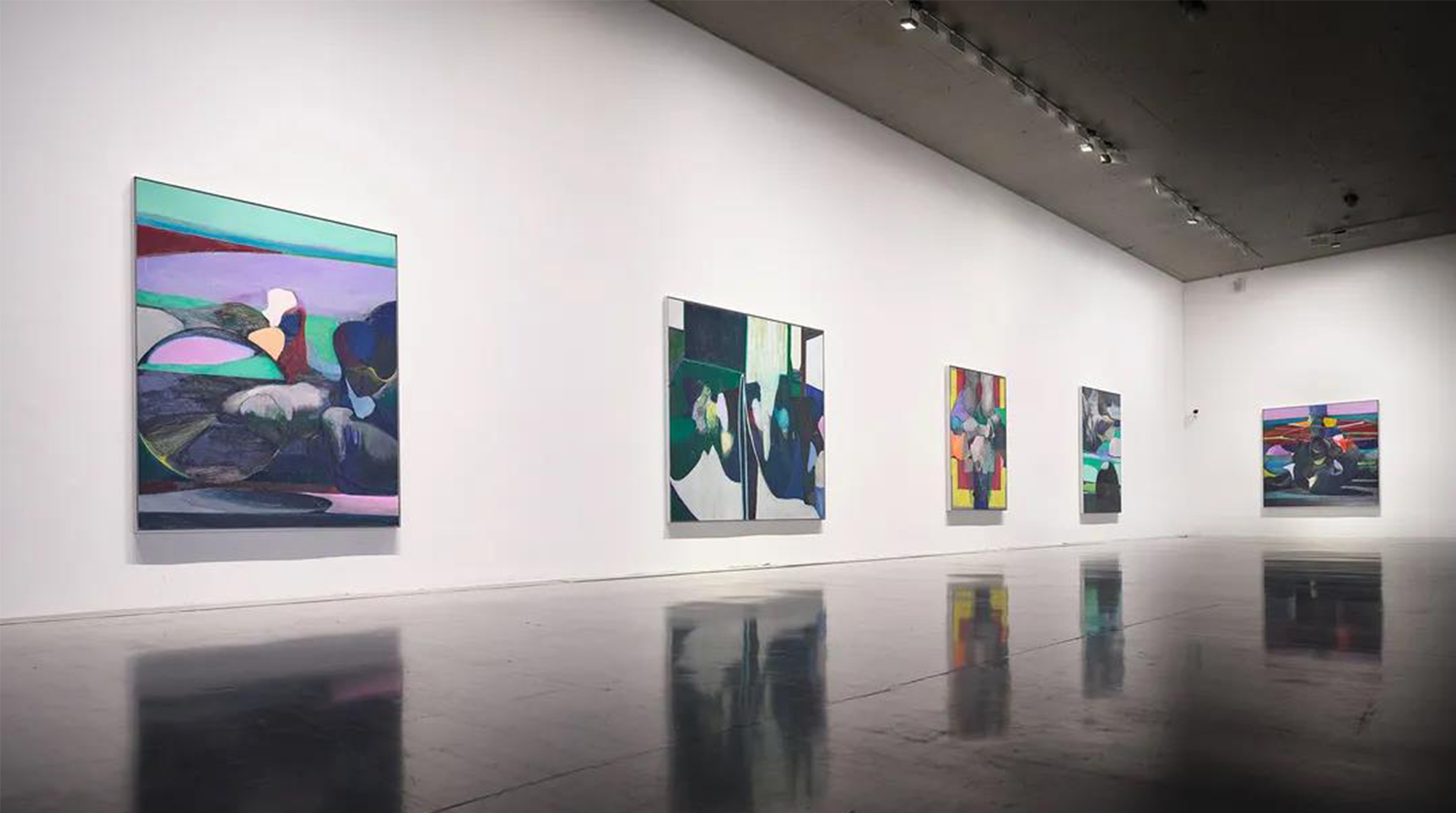

TLW series are professional museum gallery lighting fixtures. They are polarized designed to evenly light a wall below 10 meters height, and are suitable for large paintings display.
Item Number: TLW1-D35
Power Consumption: 35W
LED: 27W

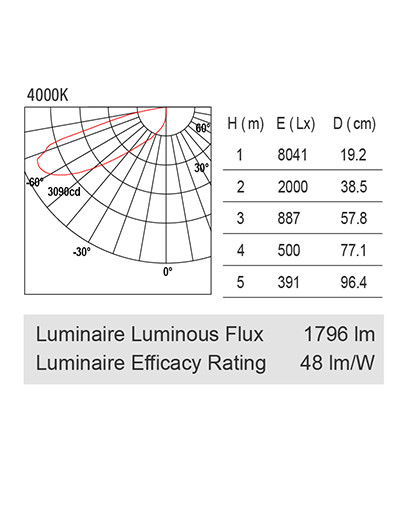

Luminous Flux: 1796lm
CRI: Ra>90/Ra>95
Color Temperature: 3000K/3500K/4000K

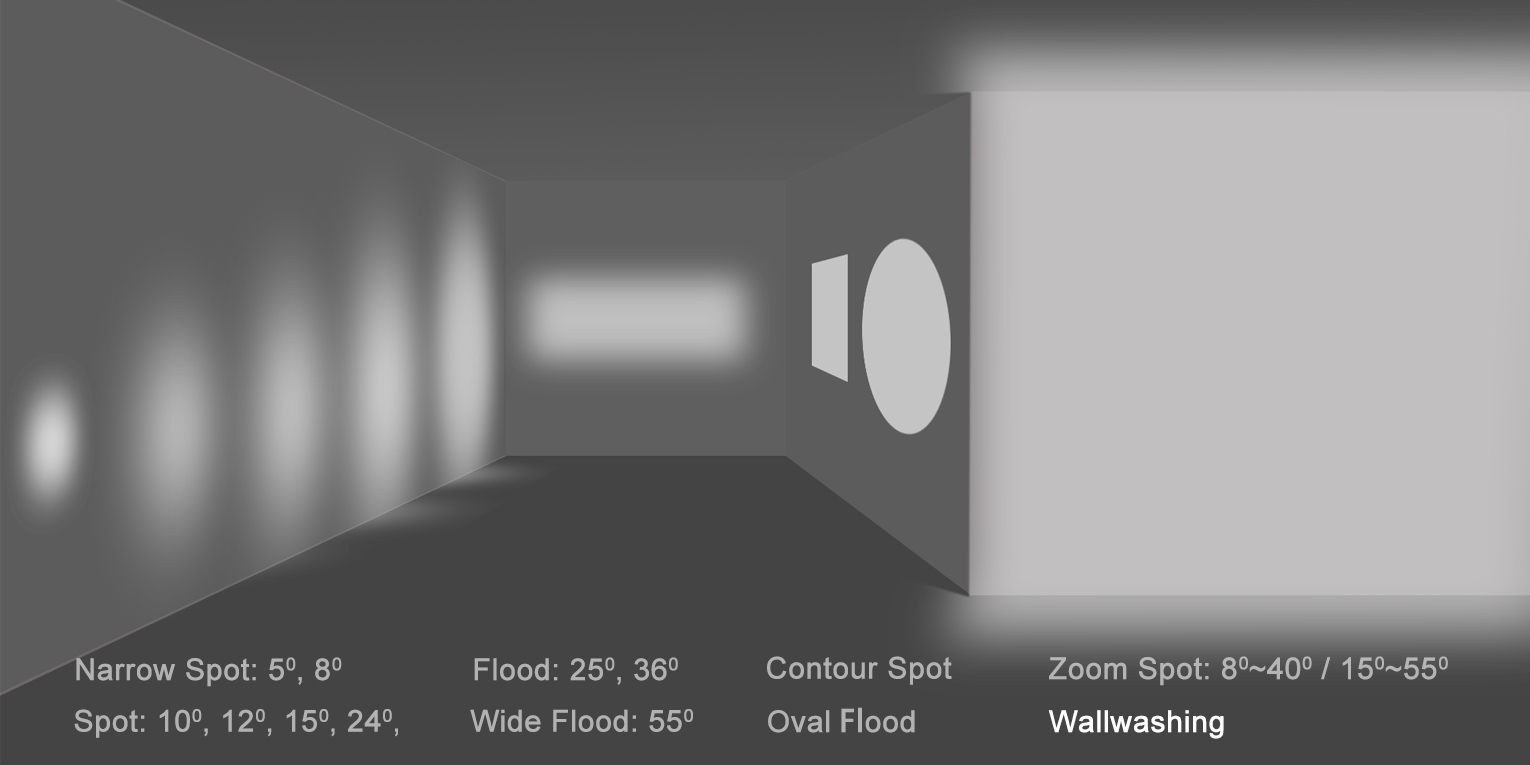

Beam Angle: Washwashing
Dimming: 0-100%
Wall Washing
1 Circuit or 3 Circuits Track
Horizontal Rotation
Pivotable through +/-12°
Dimmable
Dimming Mode
CRI>90 CRI>95
UGR<19
Efficient Optical Technology
Branded High Power LEDs
No Flickering
Housing Colors
Net Weight
IP20
CE
RoHS

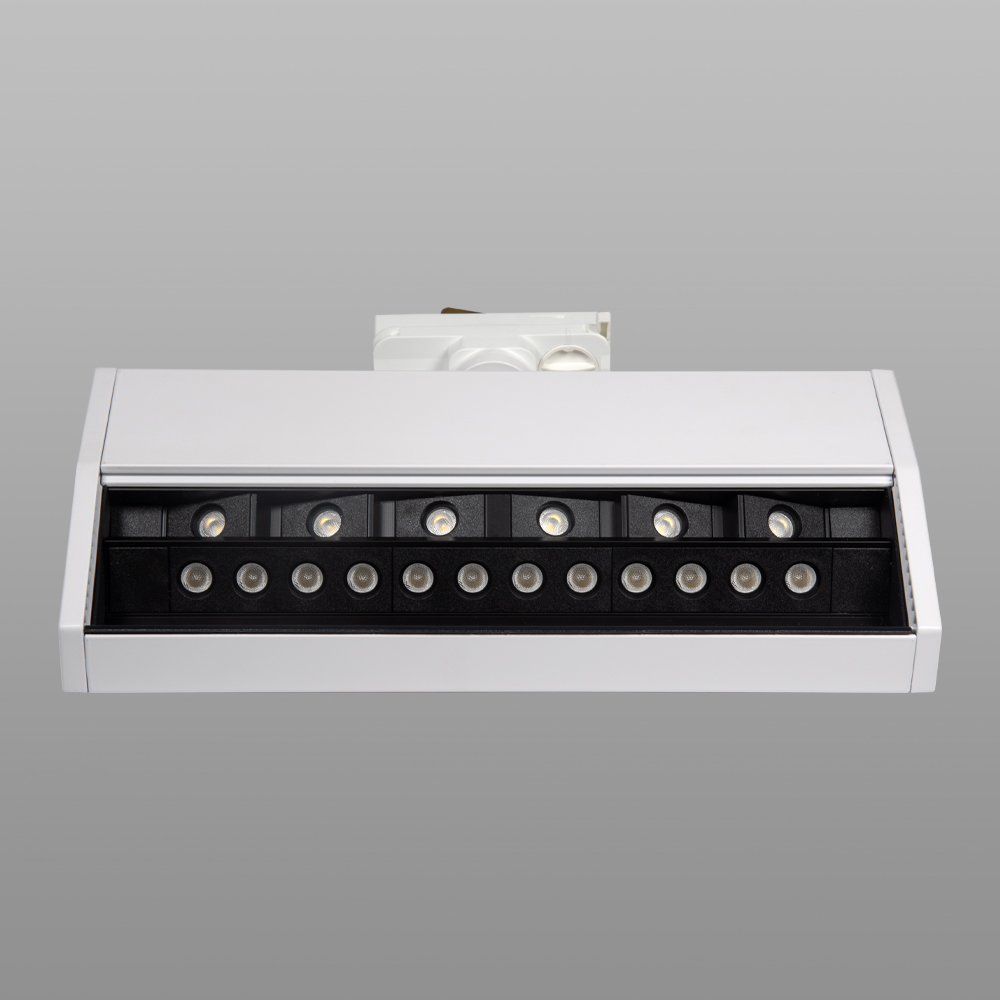

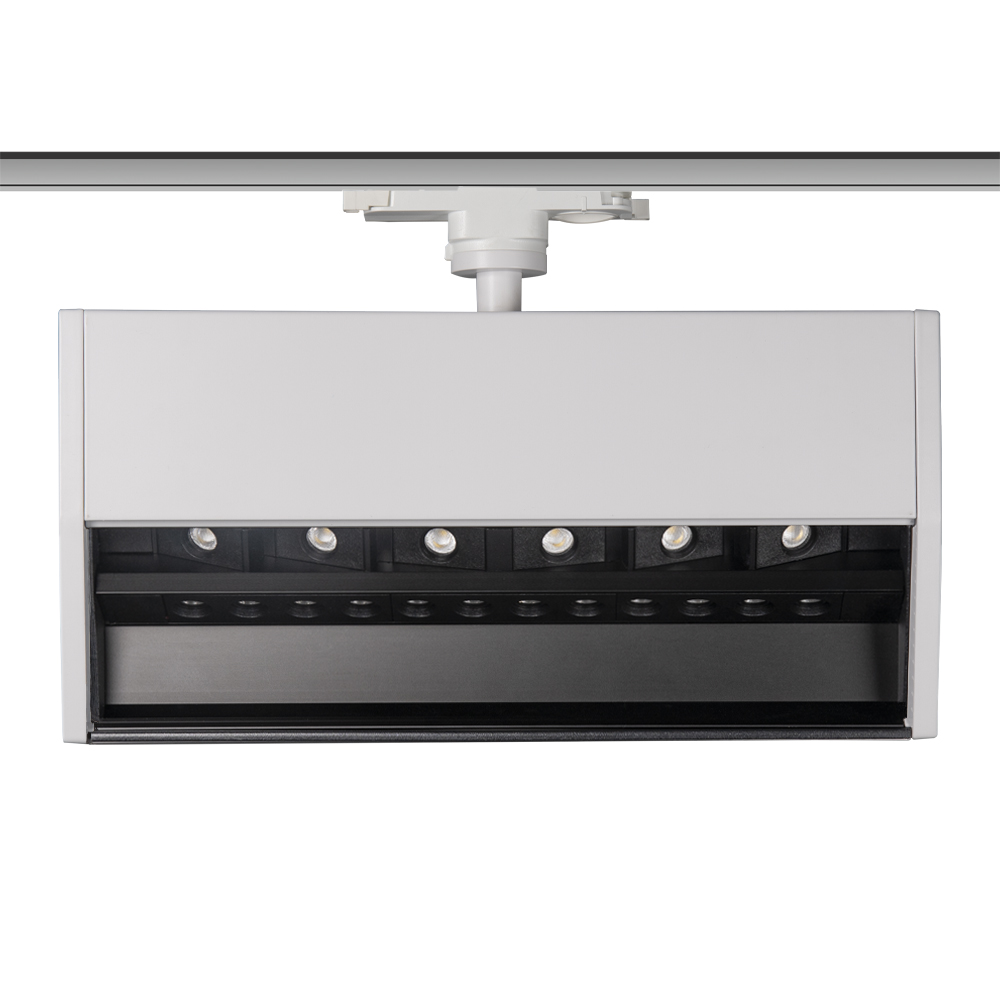

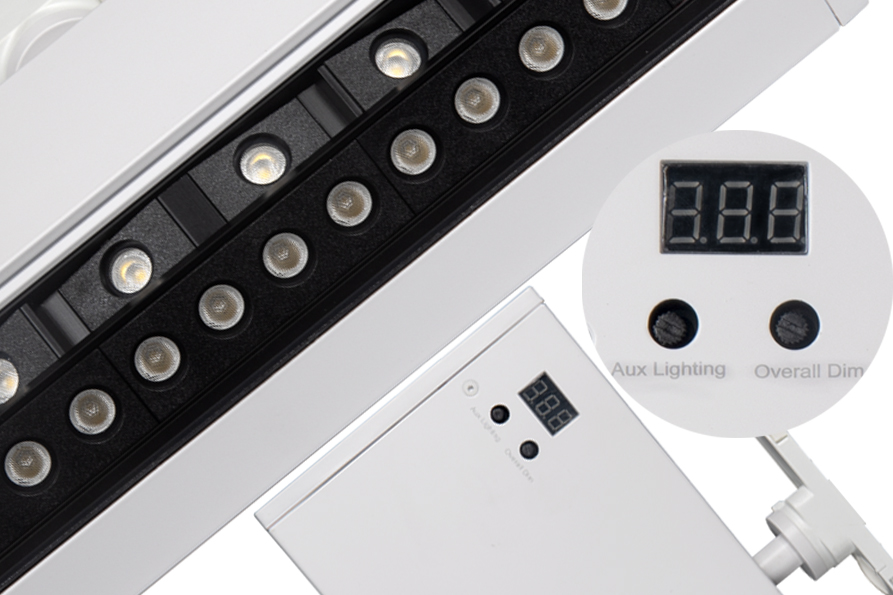

Unique main and auxiliary light source design to achieve precise light distribution and uniform wall washing effect. The brightness of the main and auxiliary light sources can be adjusted individually to have different illumination at the upper and middle parts of the wall. Special-designed lens delivers a soft, stable and delicate light beam.

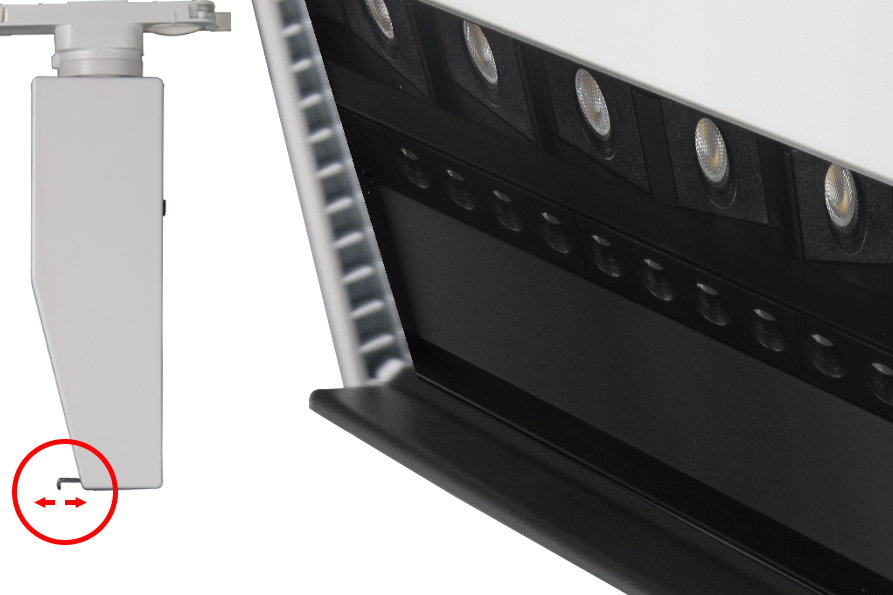

The glareshield could be adjusted (front and rear stretching) according to on-site installation height of the wall washer and the distance to the wall to ensure the height of the washed wall surface while also minimize unnecessary scattered light and reduce glare.

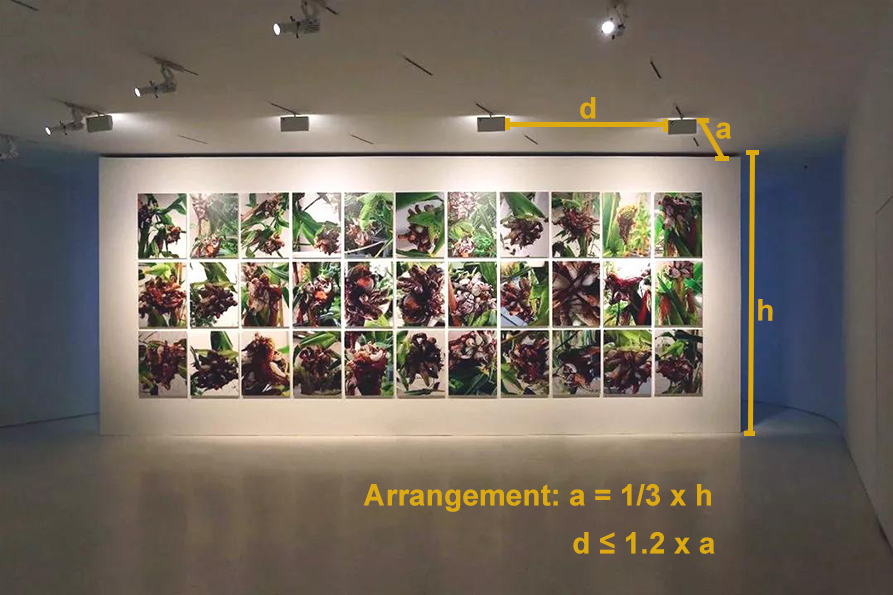

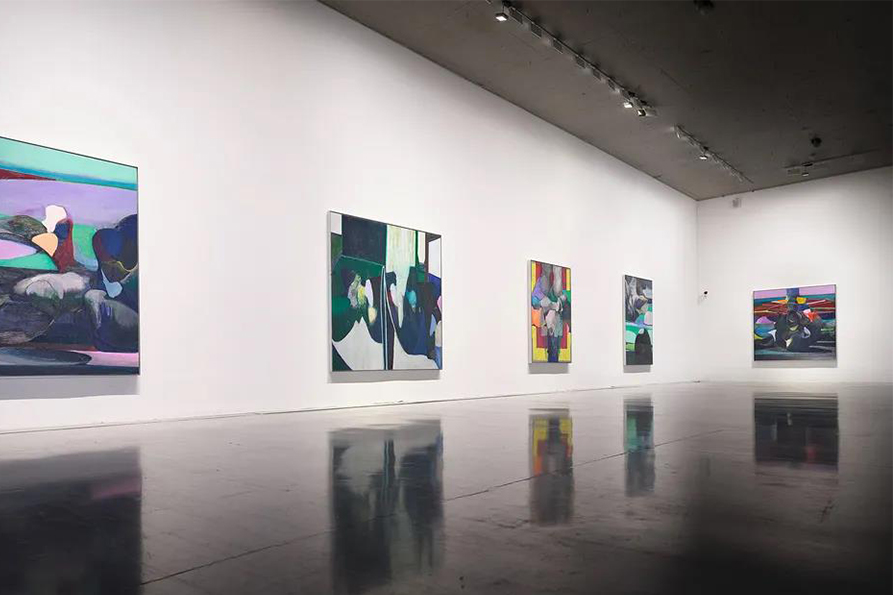

The unique design gives the wall washer an ultra-wide wall-washing beam angle and high-efficient luminous flux. Wall washing height is up to 8 meters with a uniform illumination of the wall.

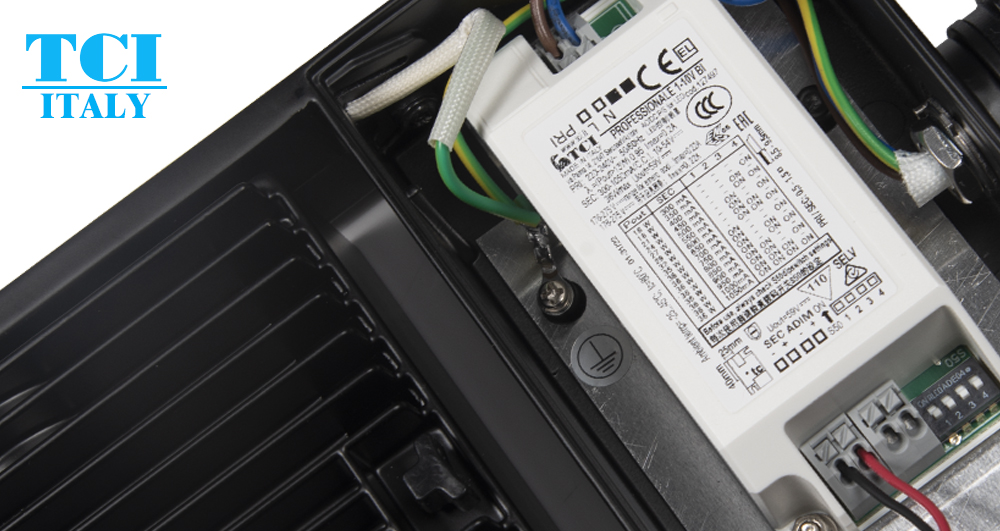

Minar spotlights apply the original TCI driver to ensure superior performance and stability for museum lighting.
The driver and LED modules are placed in different cabinets to ensure their heat dissipation does not interfere with each other. This structure ensures the stability of the driver, thus further improving the overall luminous efficiency and extending the overall life of the spotlight.

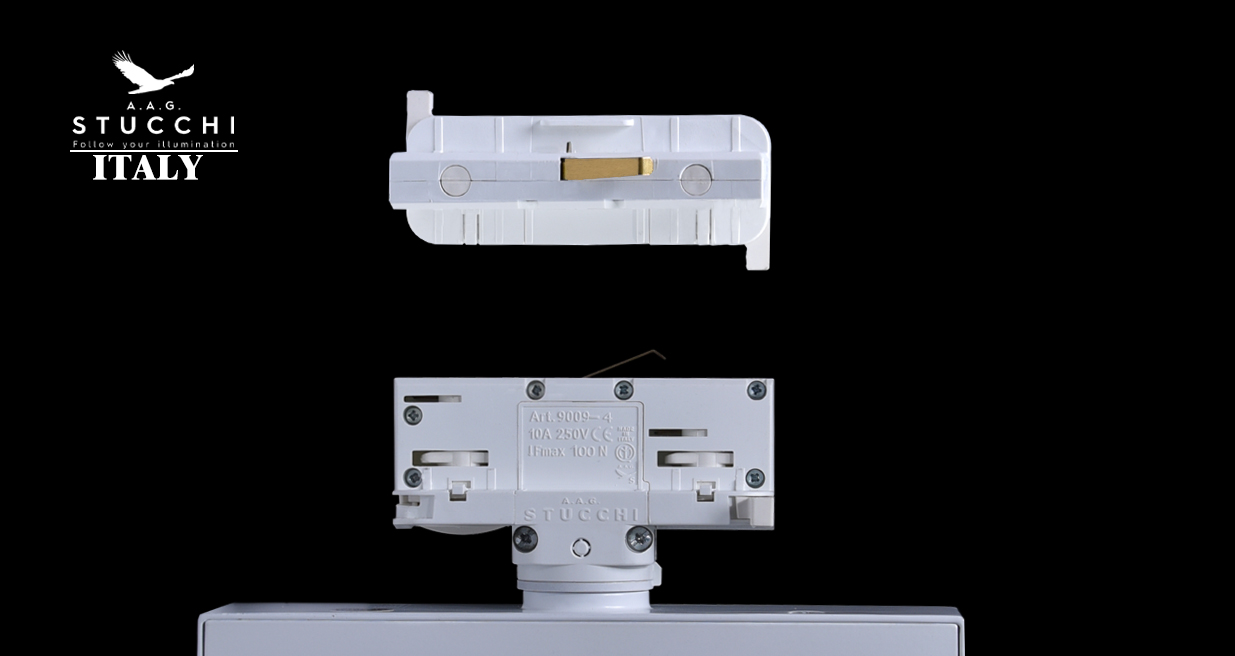

Original Stucchi track adapter:
1. Two pieces of the lever of the cam at each side of the adapter for better lockup of the spotlight on the track.
2. Maximum bearing: 5.0kgs

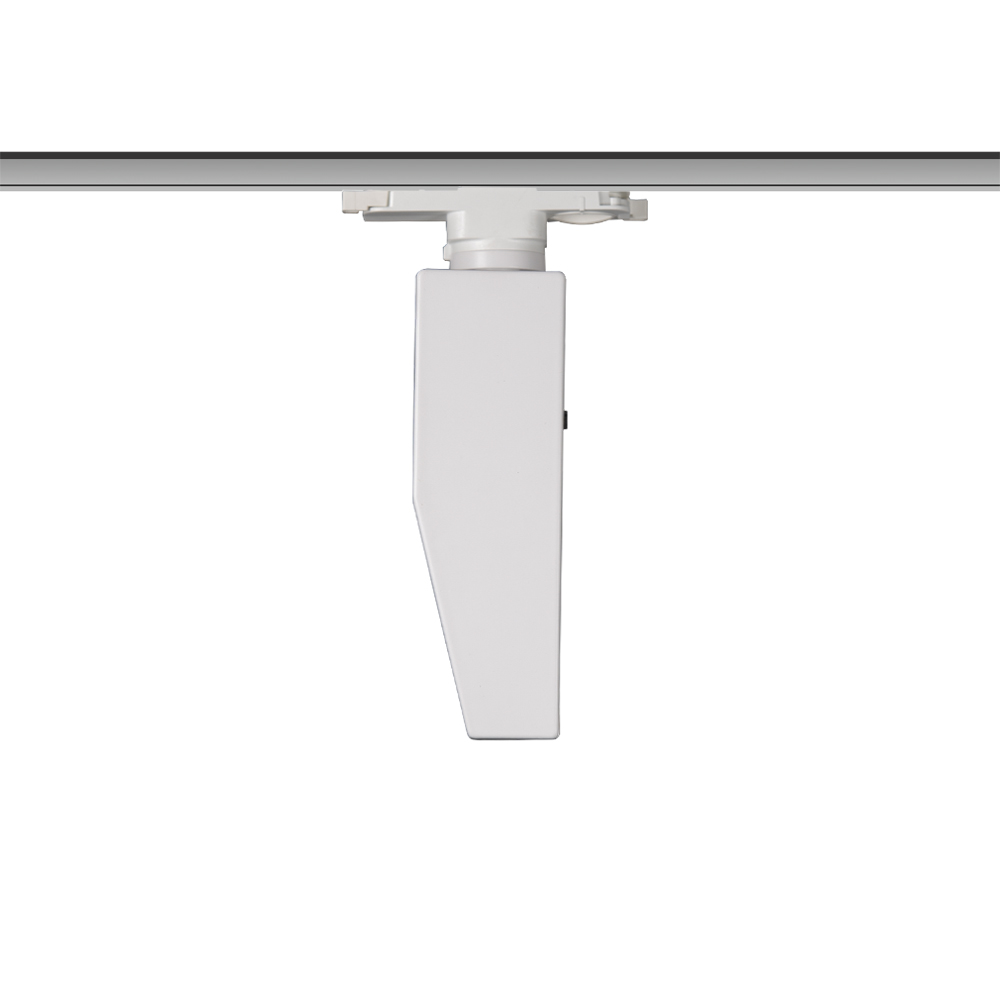

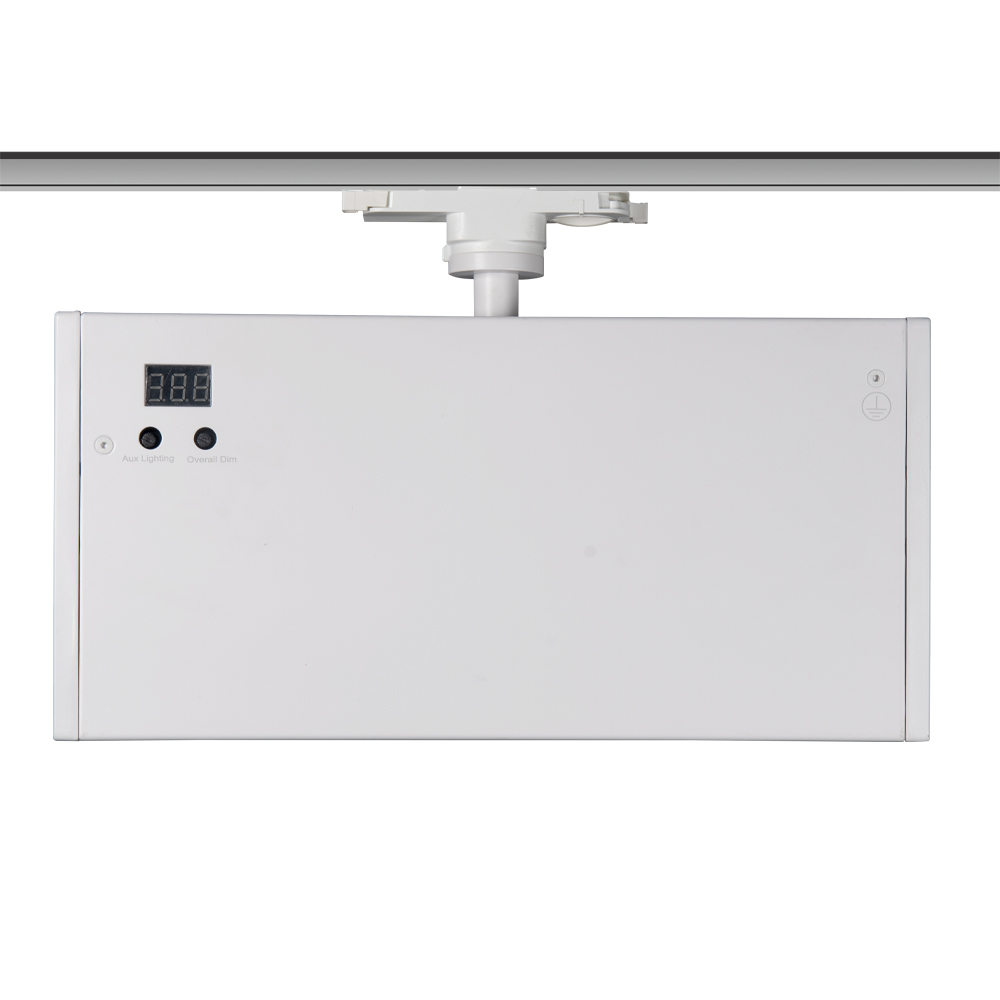

Track Wall Washer
| Model | TLW1-D35 |
| Input Voltage | 100~240V AC |
| Power | 35W |
| LED Power | 27W |
| CRI | RA>90 / RA>95 |
| Color Temperature | 3000K/3500K/4000K |
| Power Factor | >0.9 |
| Dimming Range | 0~100% |
| Material | Cast Aluminum, powder-coated |

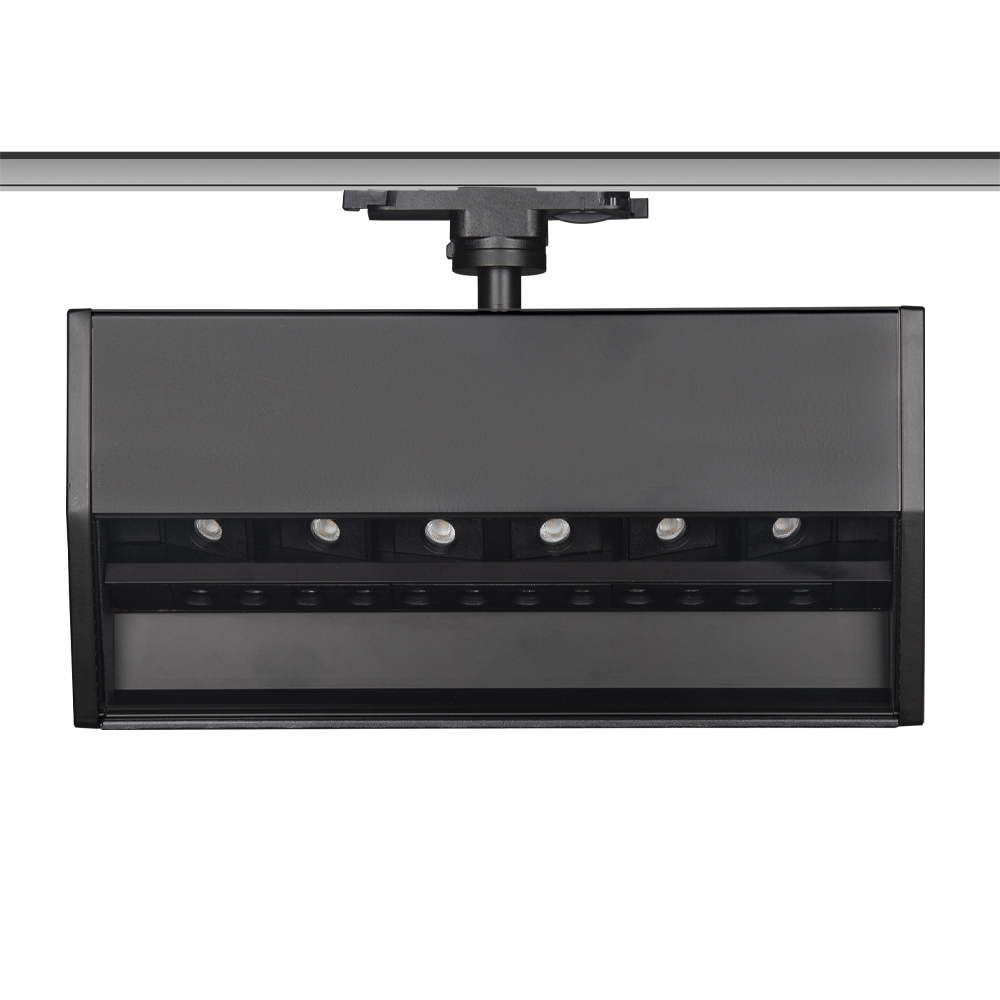

| Housing Color | White / Black |

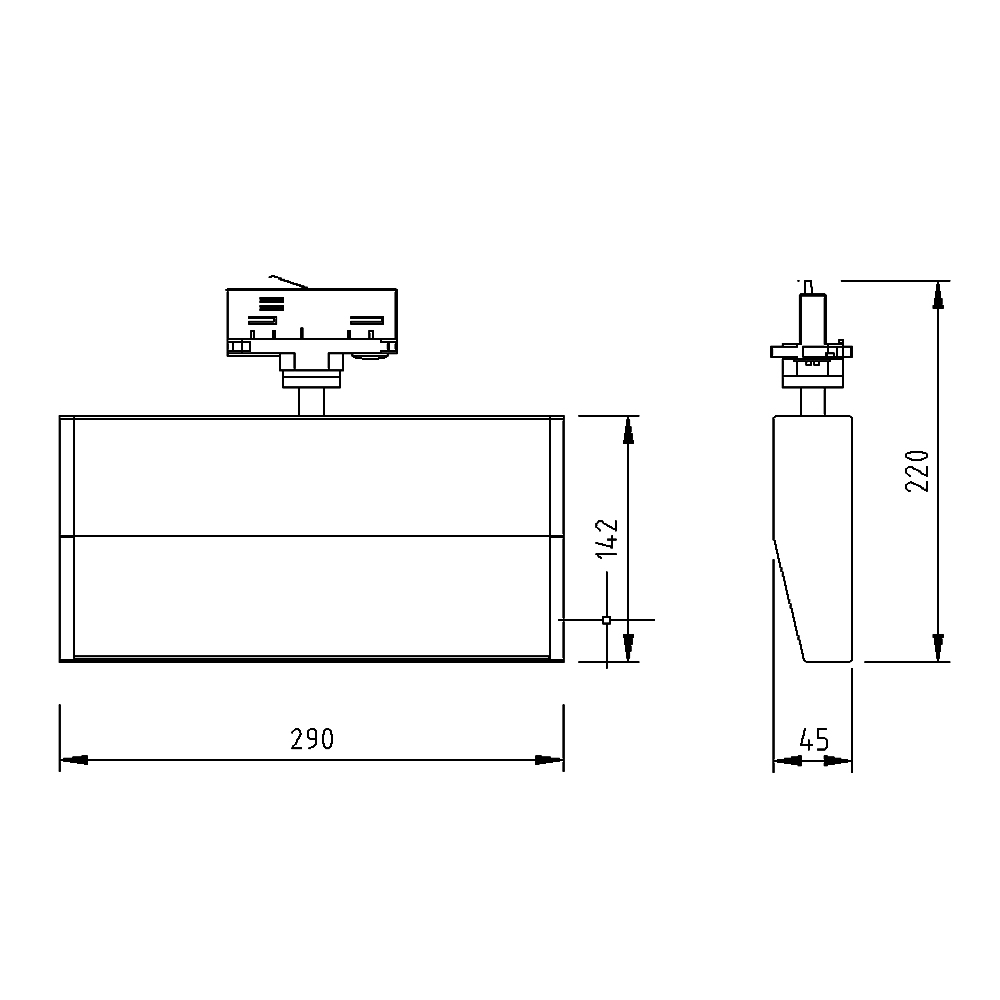

| Dimension | L290 X W45 X H220 mm |
| Net Weight | 1.6kgs |
