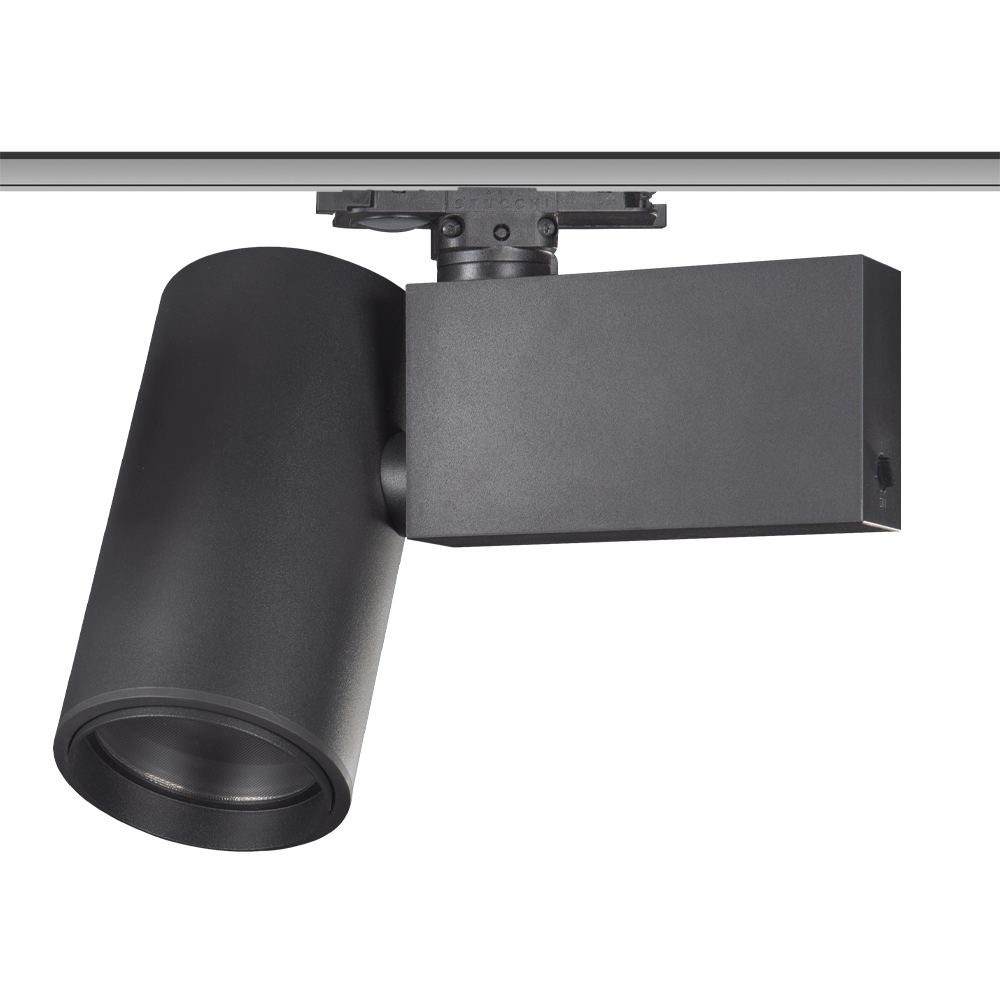

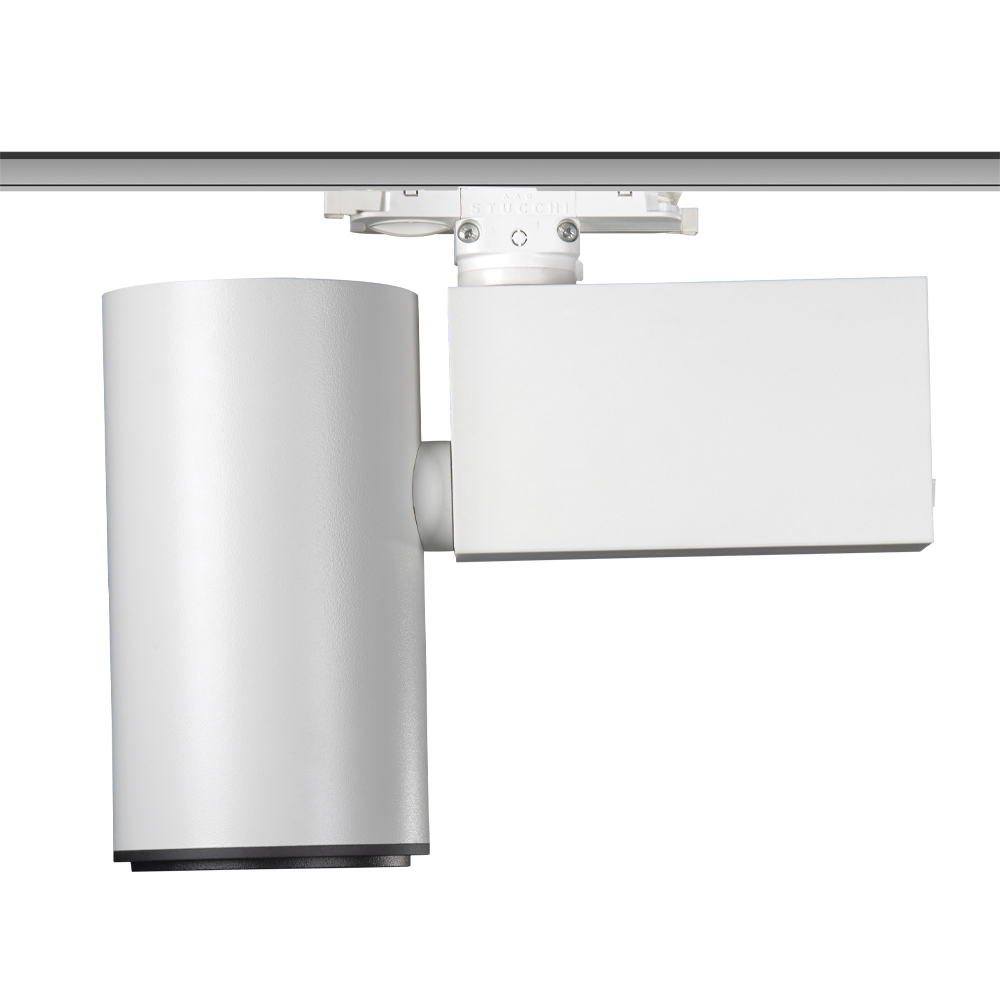

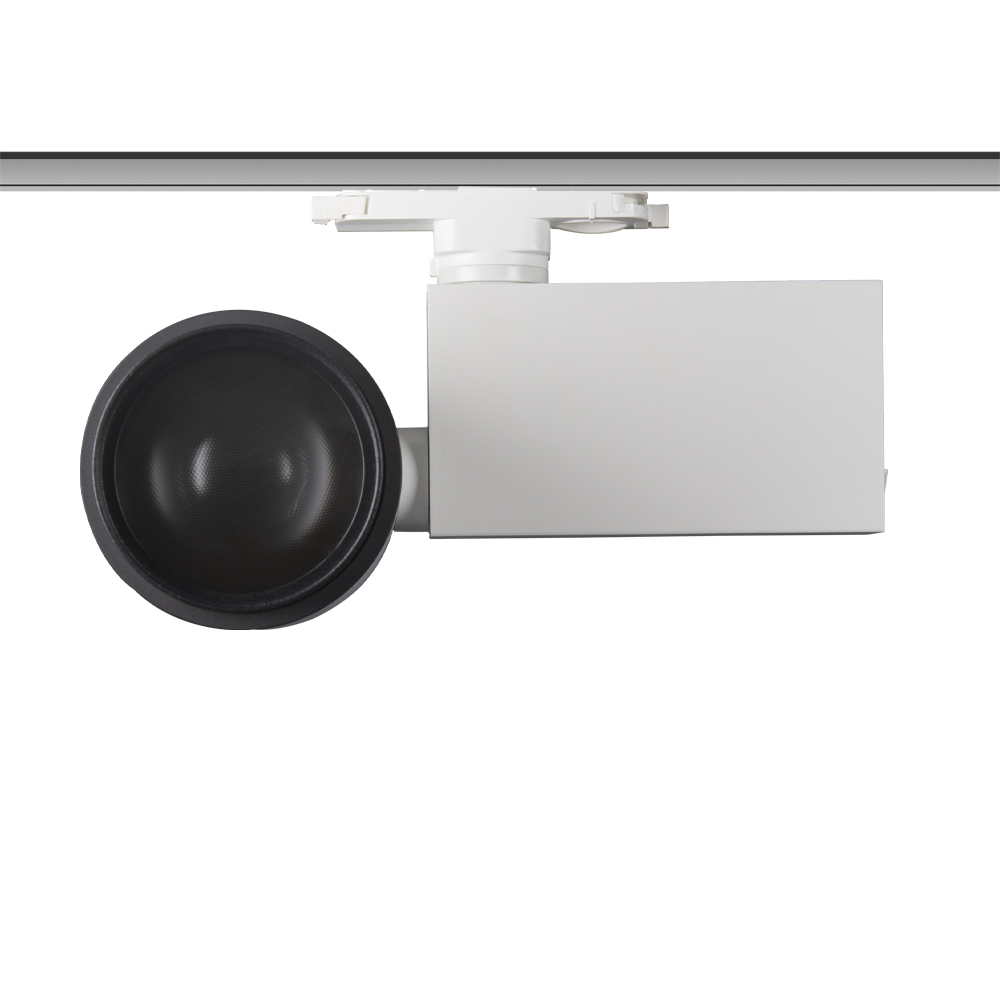

The TLS2 series are multi-purpose museum gallery lighting fixtures that are dimmable and color temperature adjustable. Their beam angle can be changed by replacing the lens to meet the lighting requirements of exhibits with a floor height of 3-6 meters.
Item Number: TLS2-C30
Power Consumption: 30W
LED: 25.2W

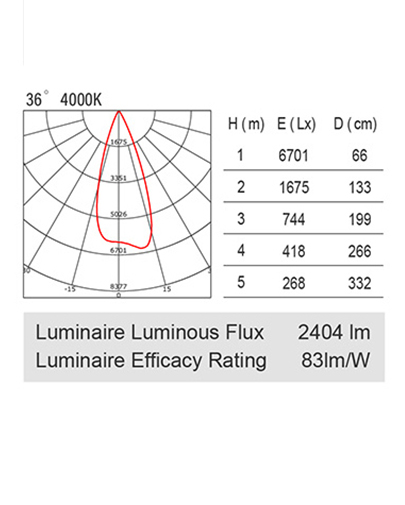

Luminous Flux: 2404lm (Max.)
CRI: Ra>90 / Ra>95
Color Temperature: 3000K/3500K/4000K

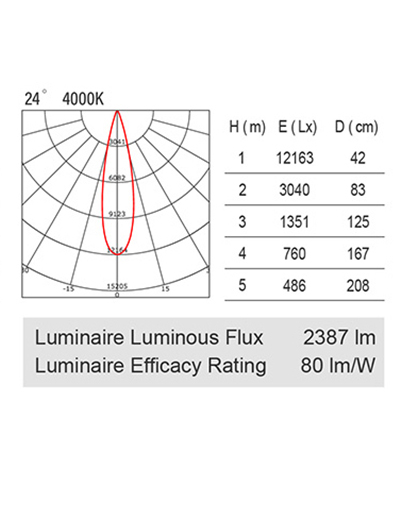

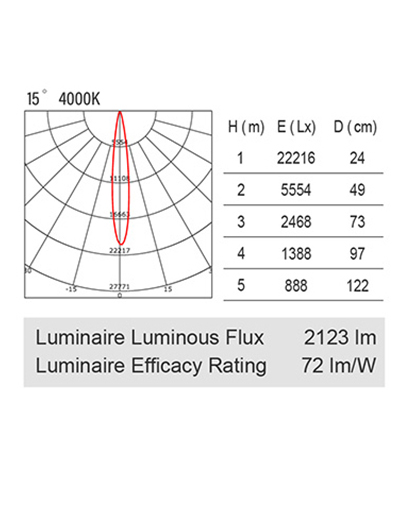

Beam Angle: 15°, 24°, 36°, 55°
Dimming: 0-100%
1 Circuit or 3 Circuits Track
Horizontal Rotation
Pivotable through 325°
Dimmable
Dimming Mode
CRI>90 CRI>95
Multi-Light Distributions
UGR<19
Efficient Optical Technology
Branded High Power LEDs
CE
RoHS
Housing Colors
Excellent Heat Management
Net Weight
IP20

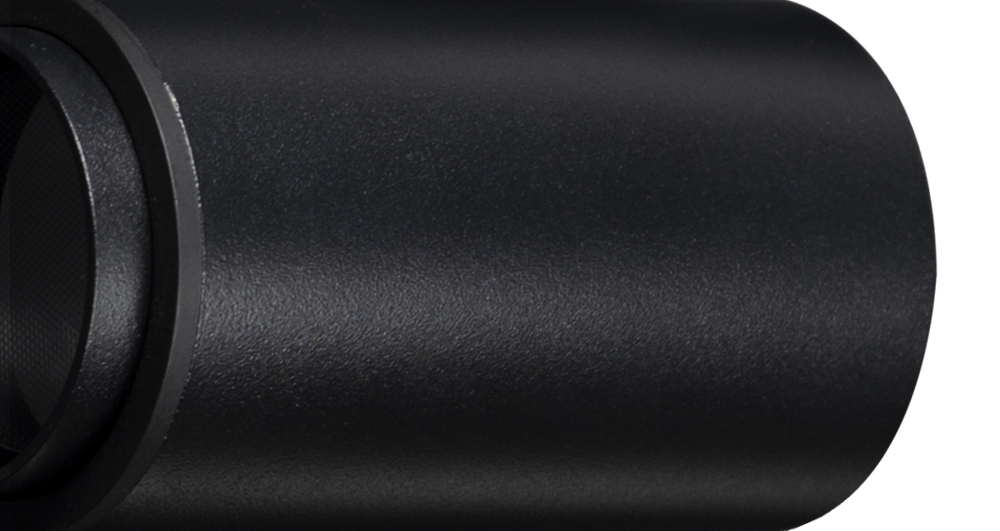

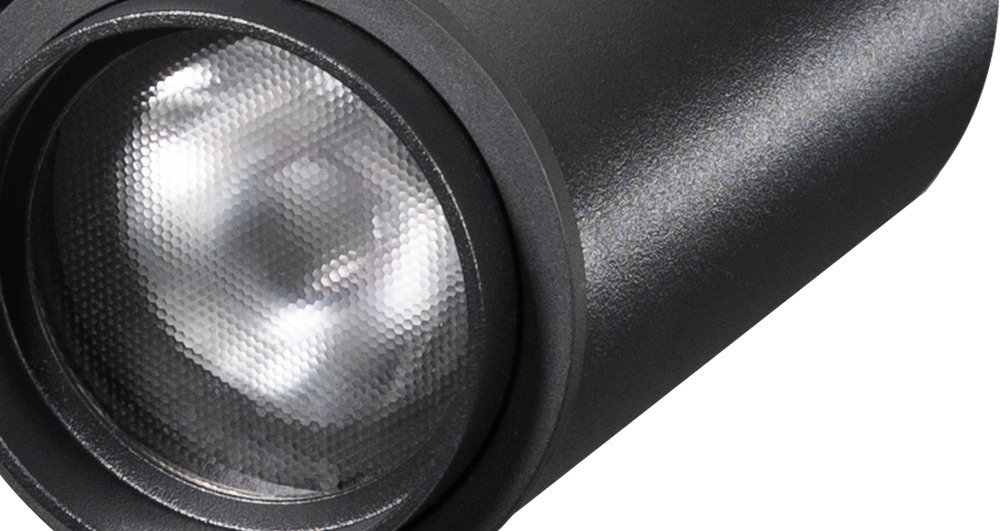

The refined hard anodic oxidation treatment entitles the spotlight an extremely delicate matte surface finishing, which gives the spotlight a solid texture while avoiding the diffuse reflection of ambient light. It also greatly improves the heat dissipation of the light.

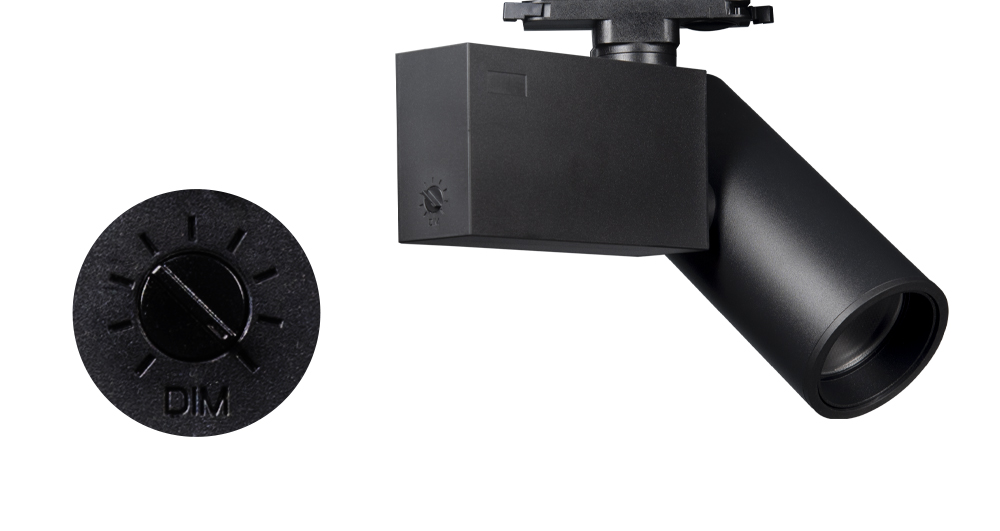

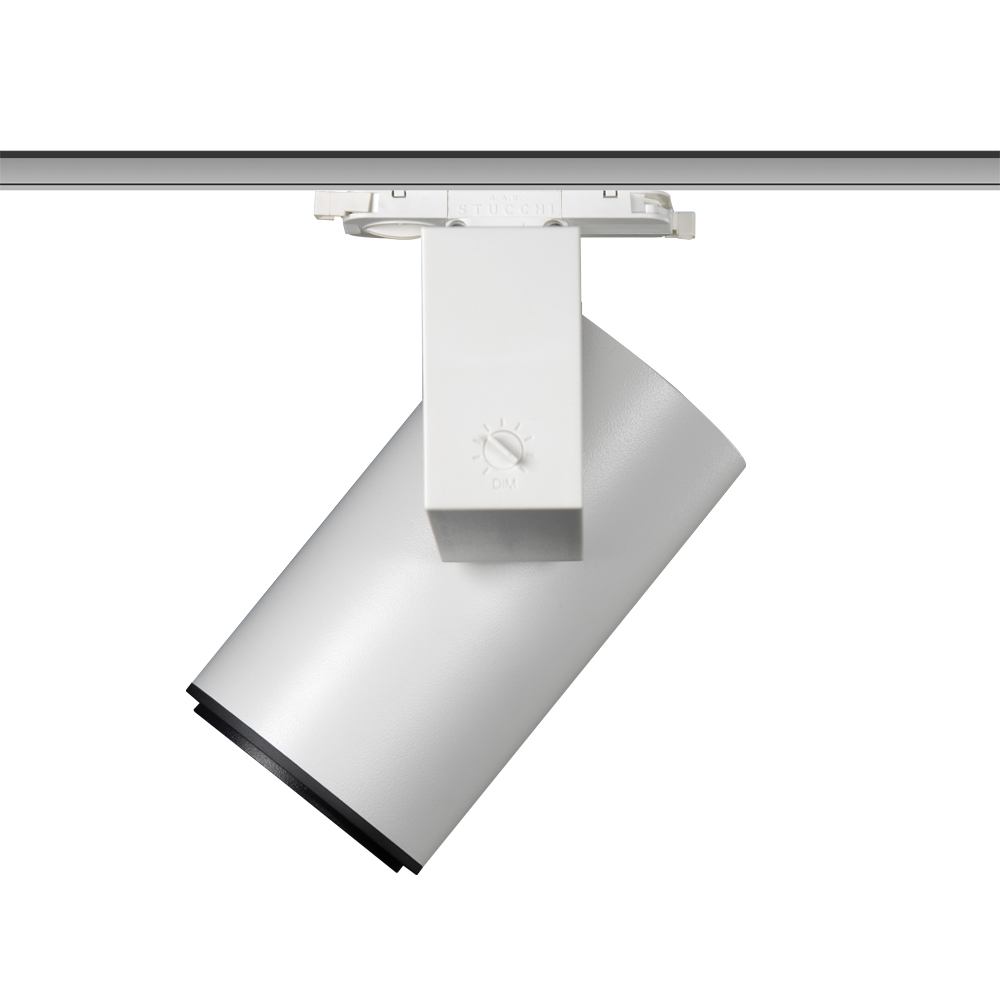

The dimming knob is on the back of the power supply housing. Turn it right to dim up the spotlight. The dimming range is 0%~100%.

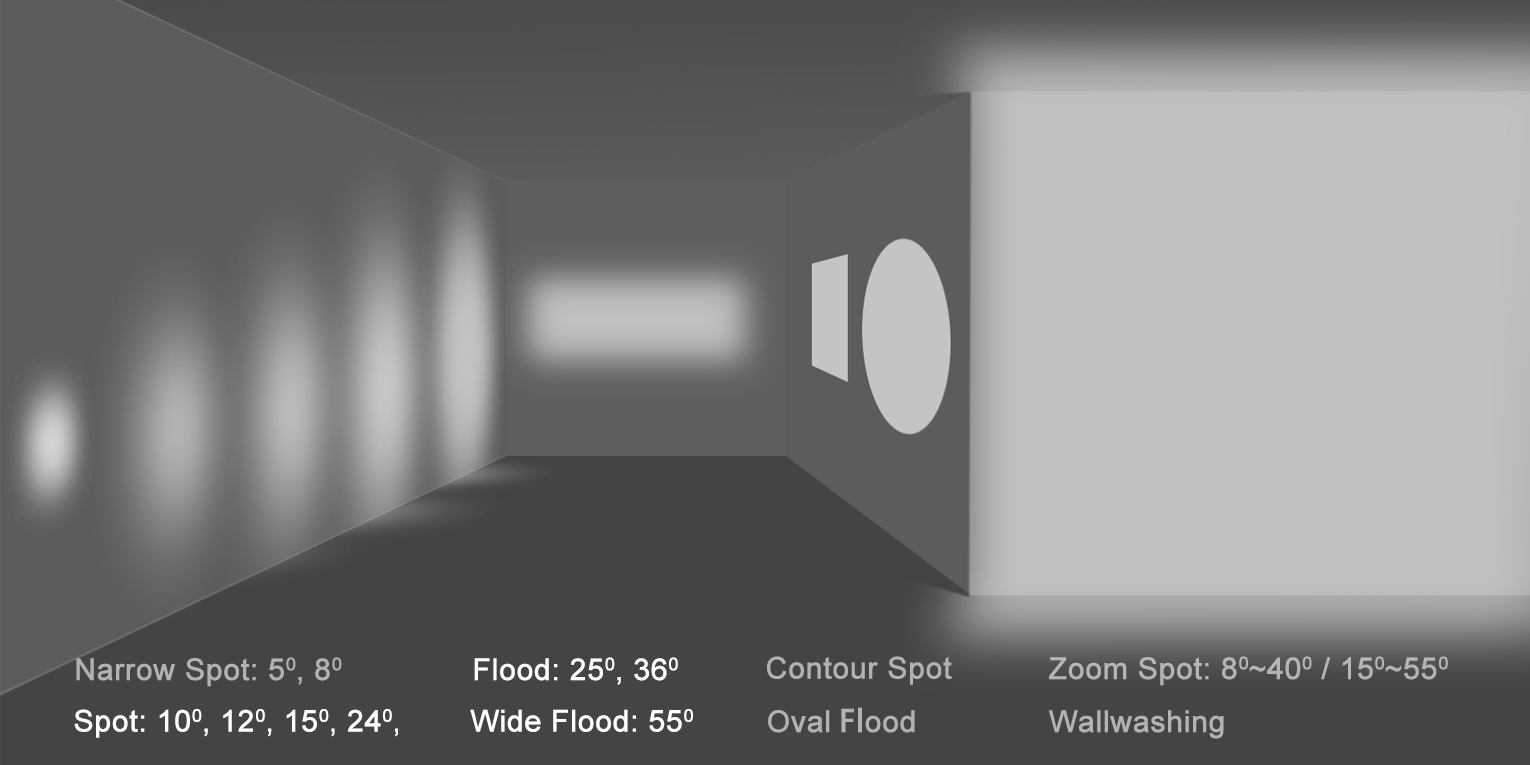

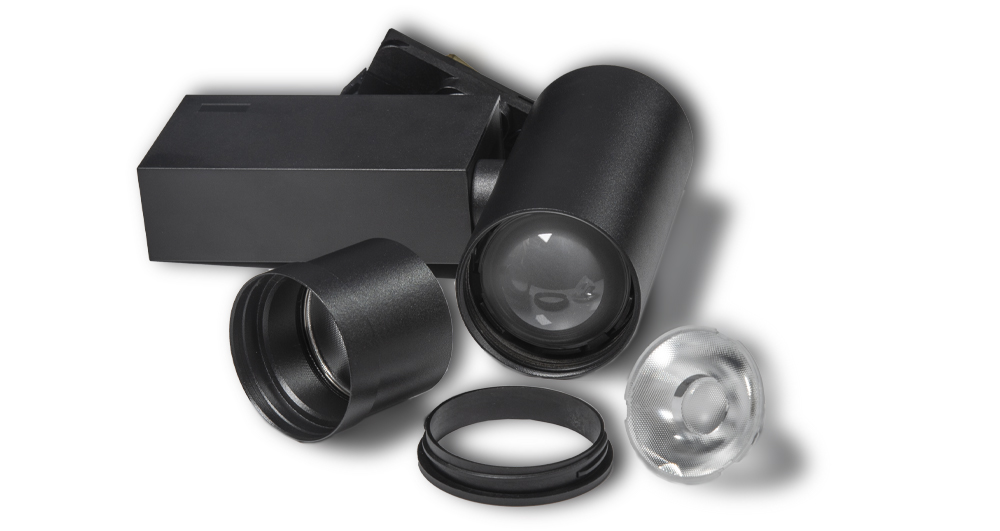

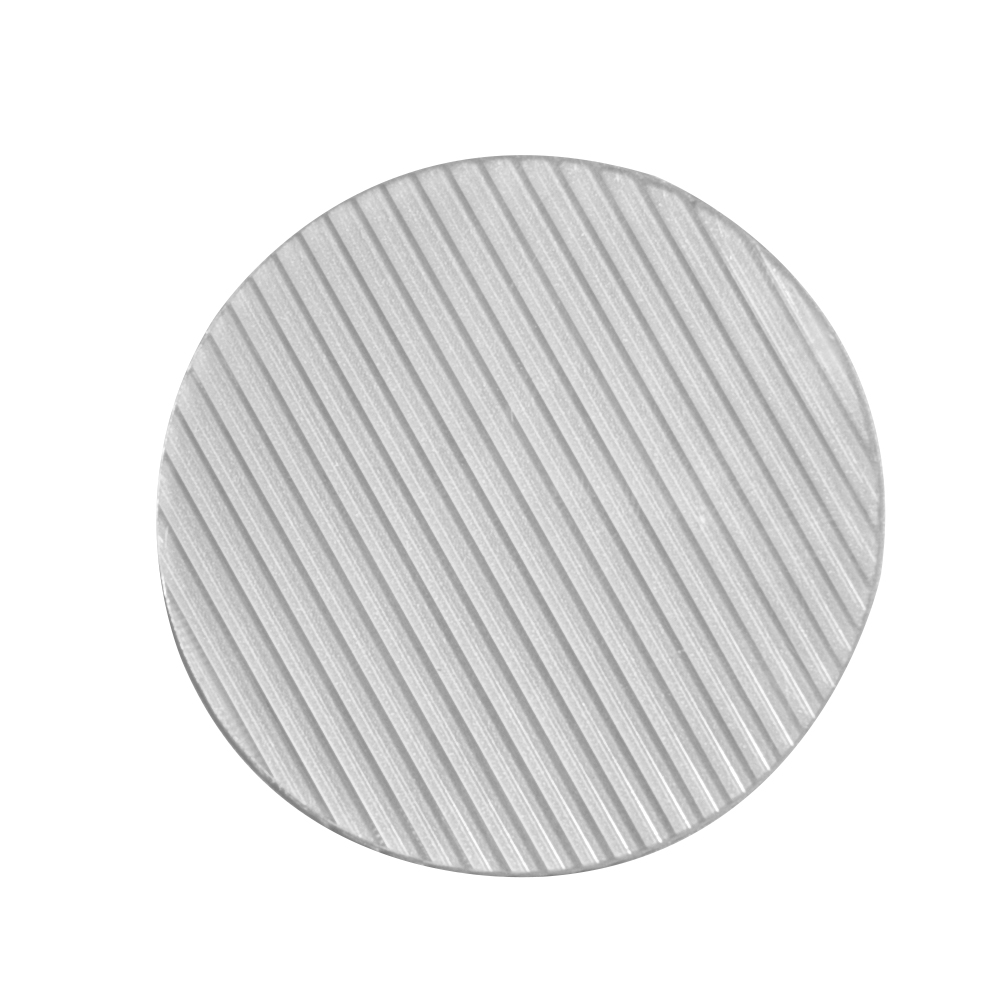

Interchangeable lens design and precise angle recognition instantly realize the perfect light-type conversion. Spotlights with multi-lens will greatly enrich the lighting mode and reduce the luminaire reserve while meeting the multiple needs of the exhibitions.

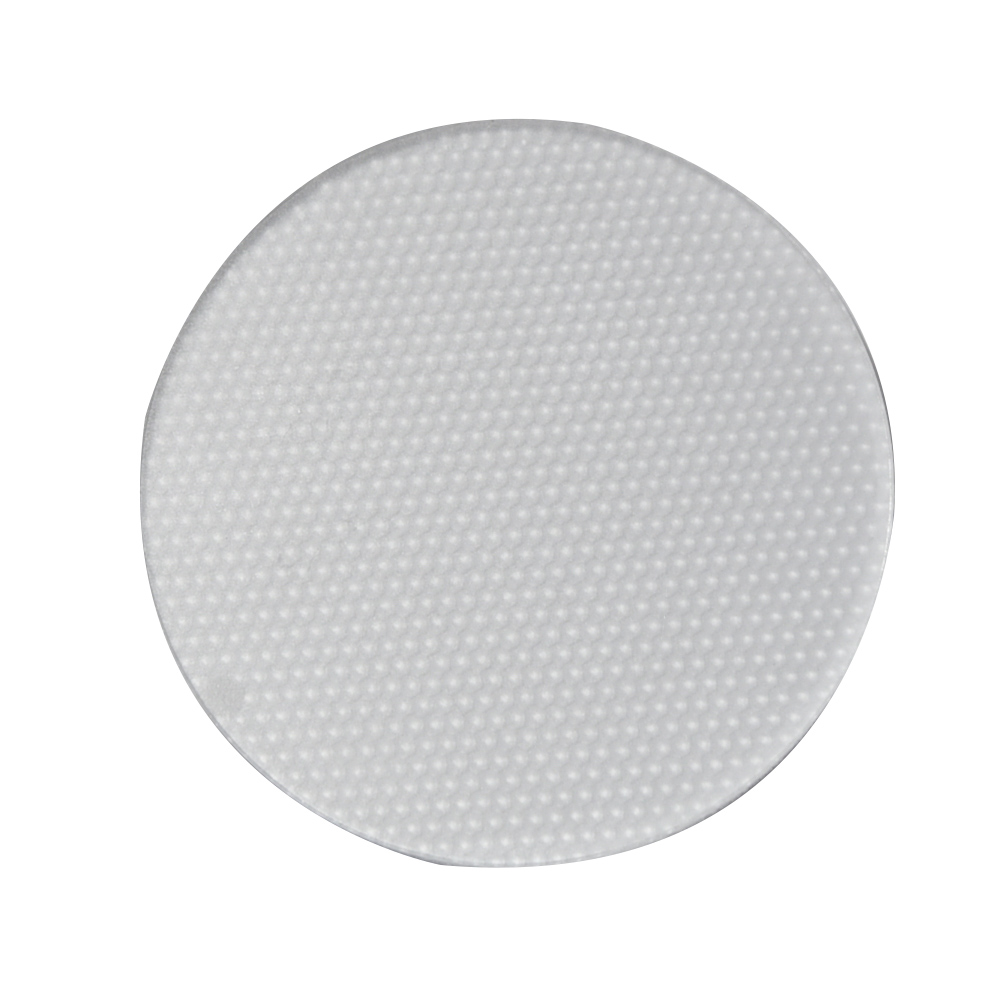

The lens could be replaced/changed manually.

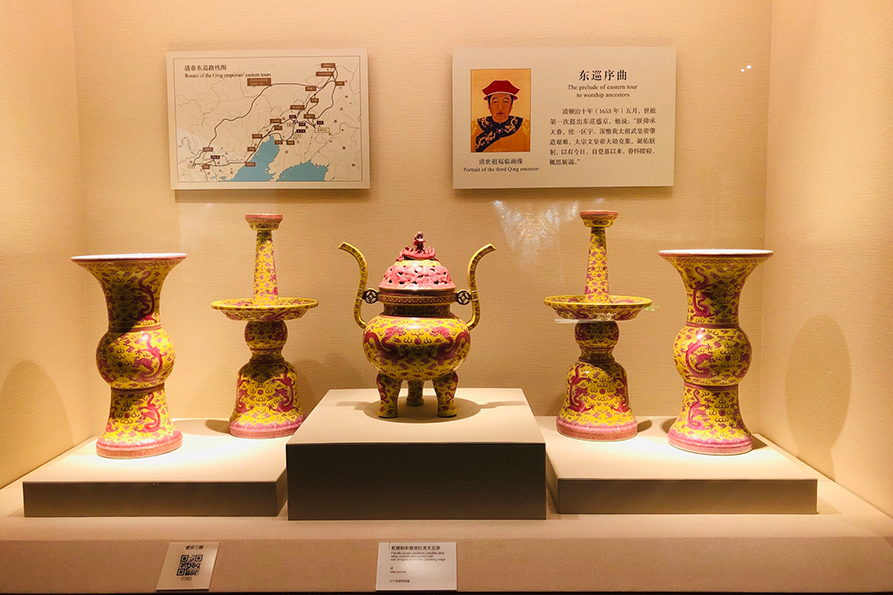

CRI could be higher than 95 to reflect the original vivid color of the exhibits.
The light is soft but extremely consistent and penetrating to reproduce the saturated colors. The spotlight is excellent for all kinds of colors, presenting you with richer, more natural colors and sharper details.

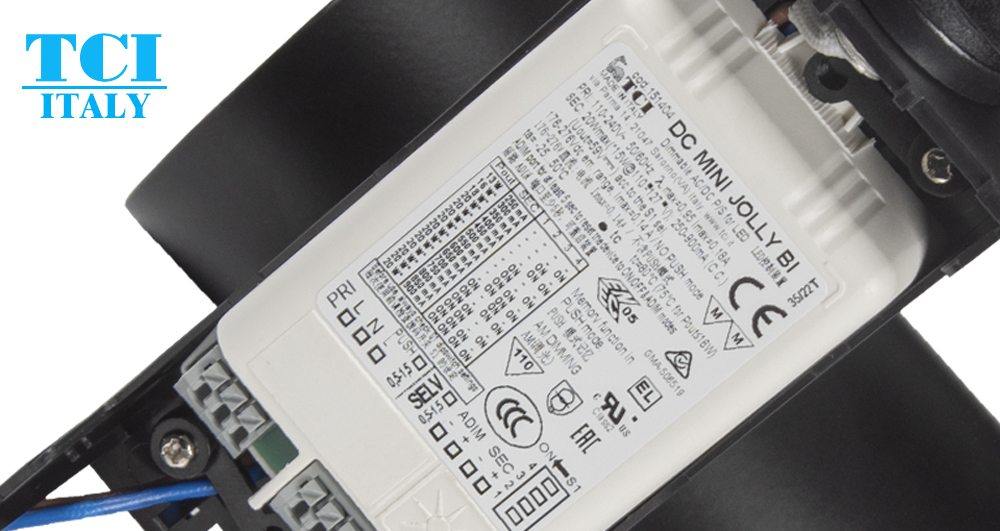

Minar spotlights apply the original TCI driver to ensure superior performance and stability for museum lighting.

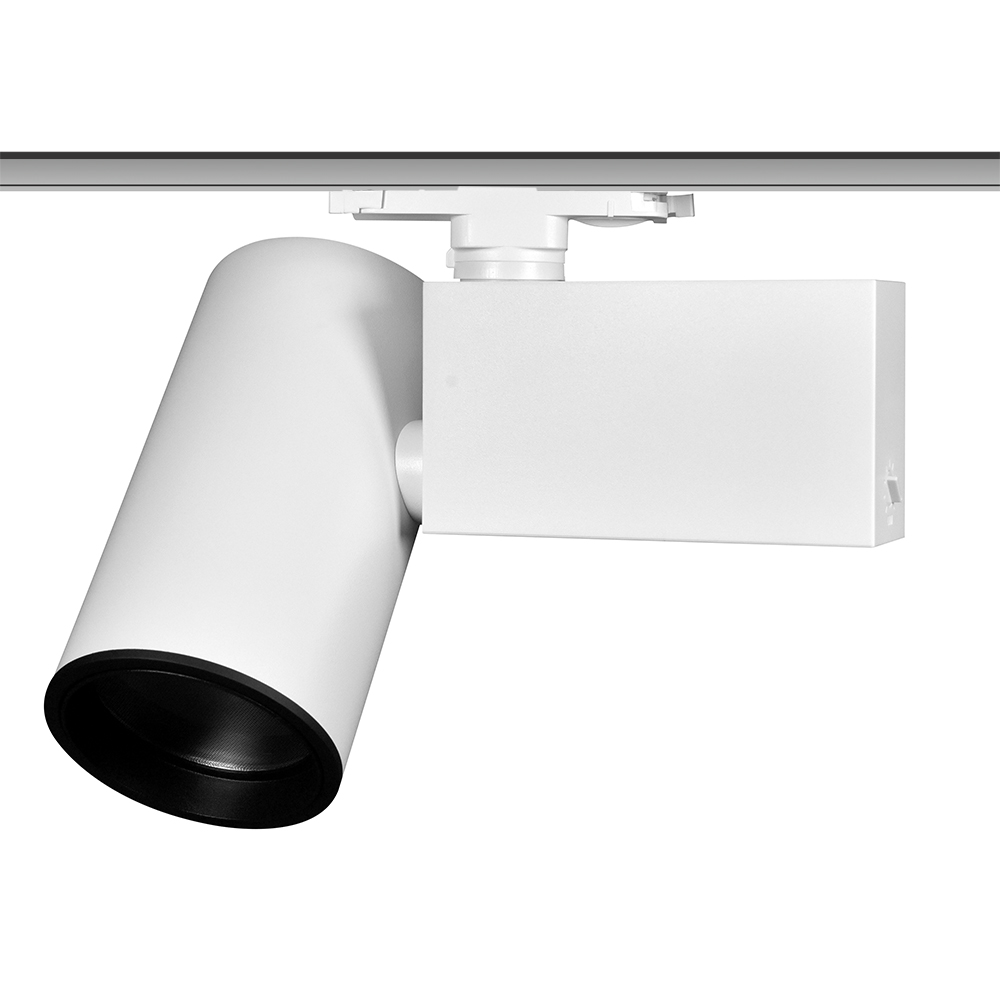

The driver and LED modules are placed in different cabinets to ensure their heat dissipation does not interfere with each other. This structure ensures the stability of the driver, thus further improving the overall luminous efficiency and extending the overall life of the spotlight.

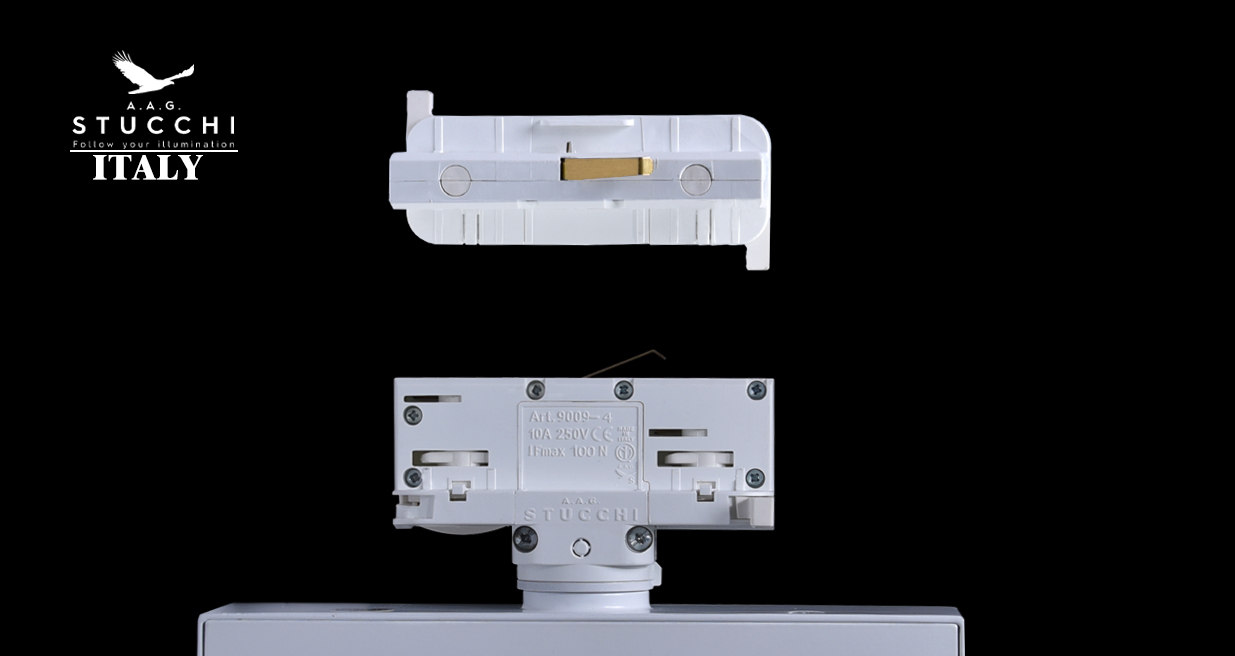

Track Adapter: Stucchi
Original Stucchi track adapter:
1. Two pieces of the lever of the cam at each side of the adapter for better lockup of the spotlight on the track.
2. Maximum bearing: 5.0kgs
Track Spotlight
| Model | TLS2-C30 |
| Input Voltage | 100~240V AC |
| Power | 30W |
| LED Power | 25.2W |
| CRI | Ra>90 / Ra>95 |
| Color Temperature | 3000K/3500K/4000K |
| Power Factor | >0.9 |
| Dimming Range | 0~100% |
| Beam Angle | 150/240/360/550 |
| Material | Aluminum, powder-coated |
| Housing Color | White / Black |

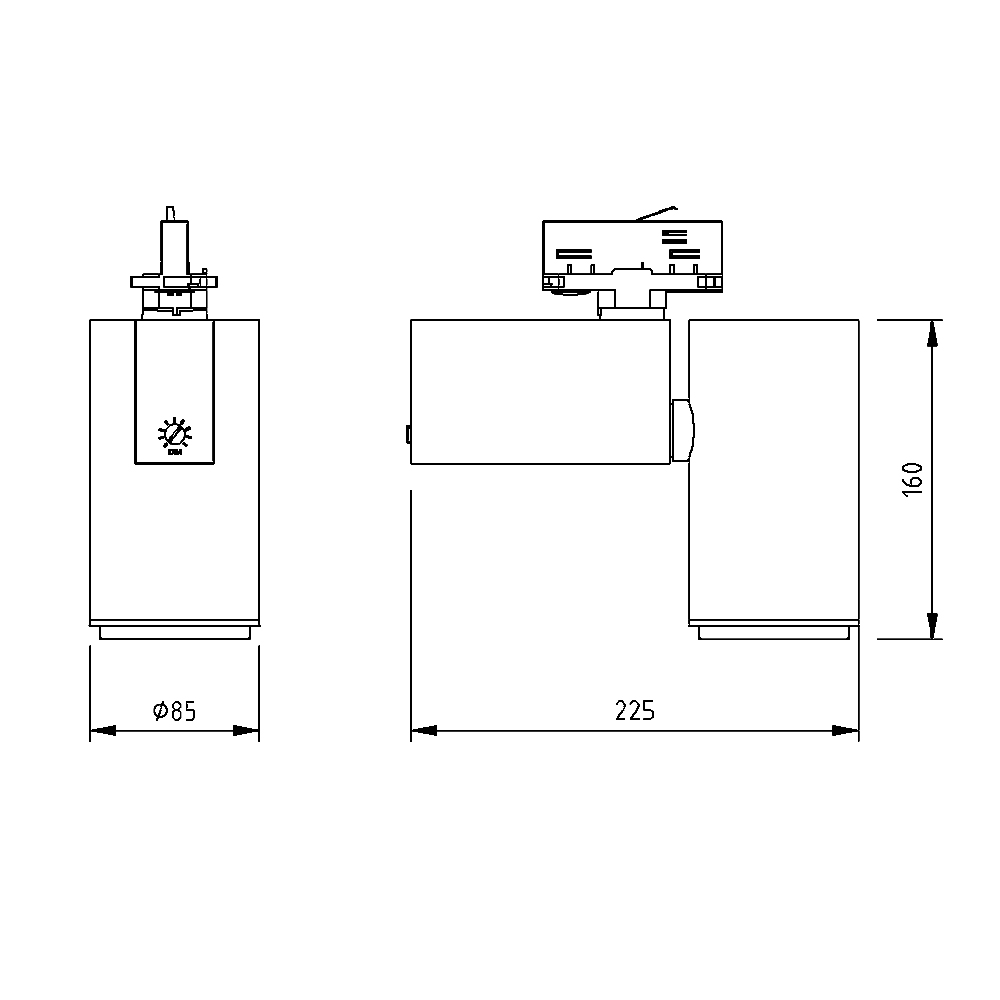

| Dimension | L225 X W160 X H85 mm |
| Net Weight | 0.87kgs |
