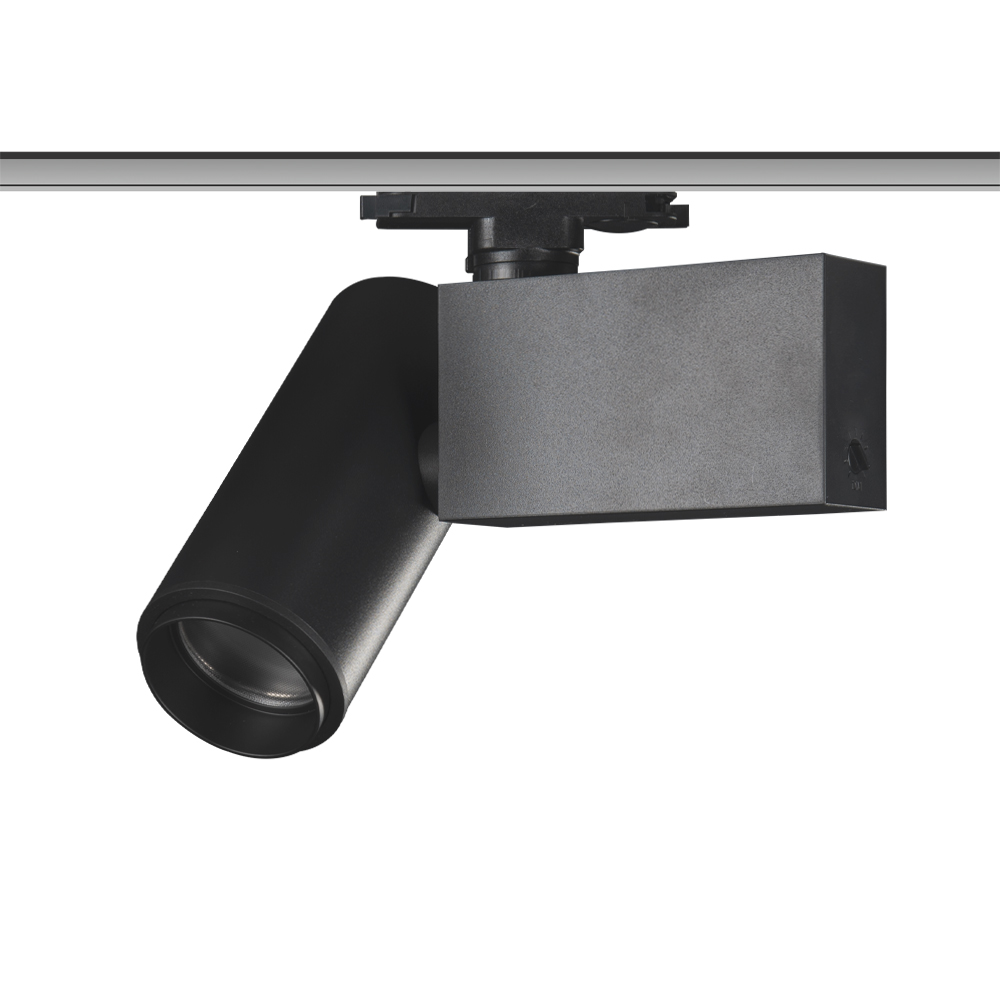

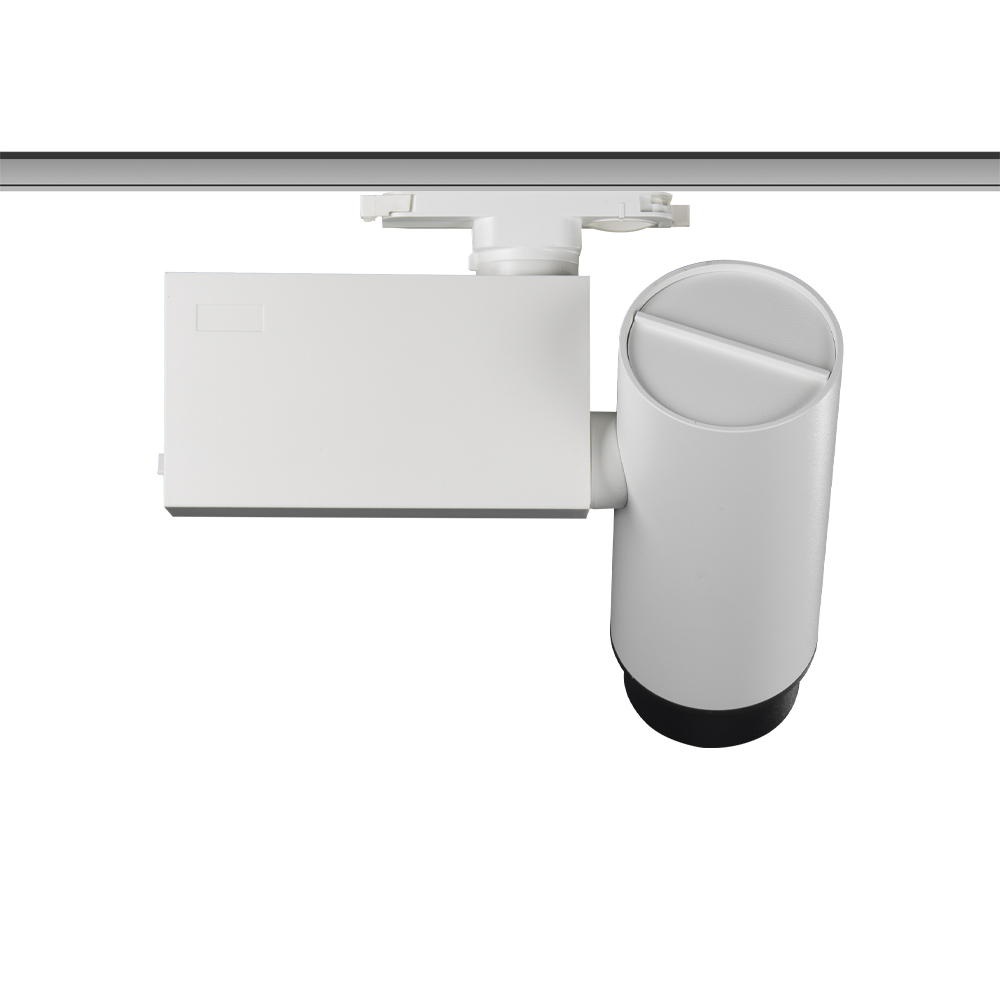

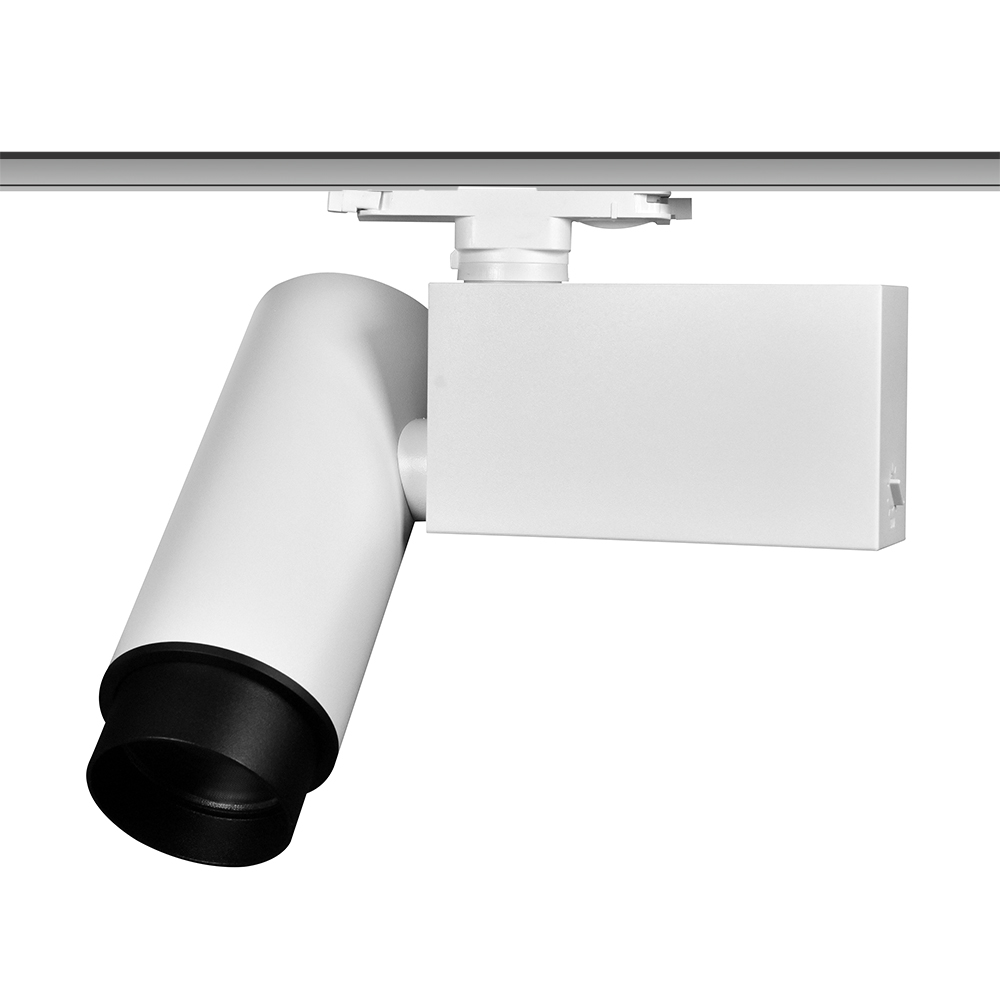

Zoomable Spotlight
Innovative optical and structural designs provide TLF2 spotlight applications from very narrow beams to wide beams. With different lenses, TLF2-C30 provides two different zoom ranges.

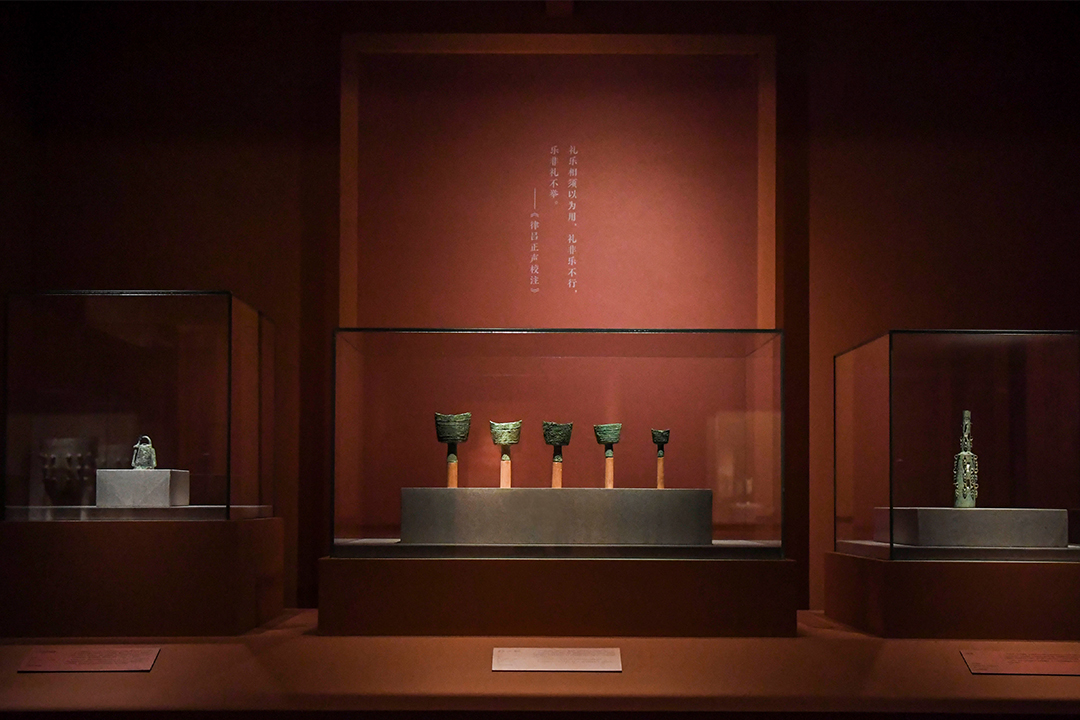

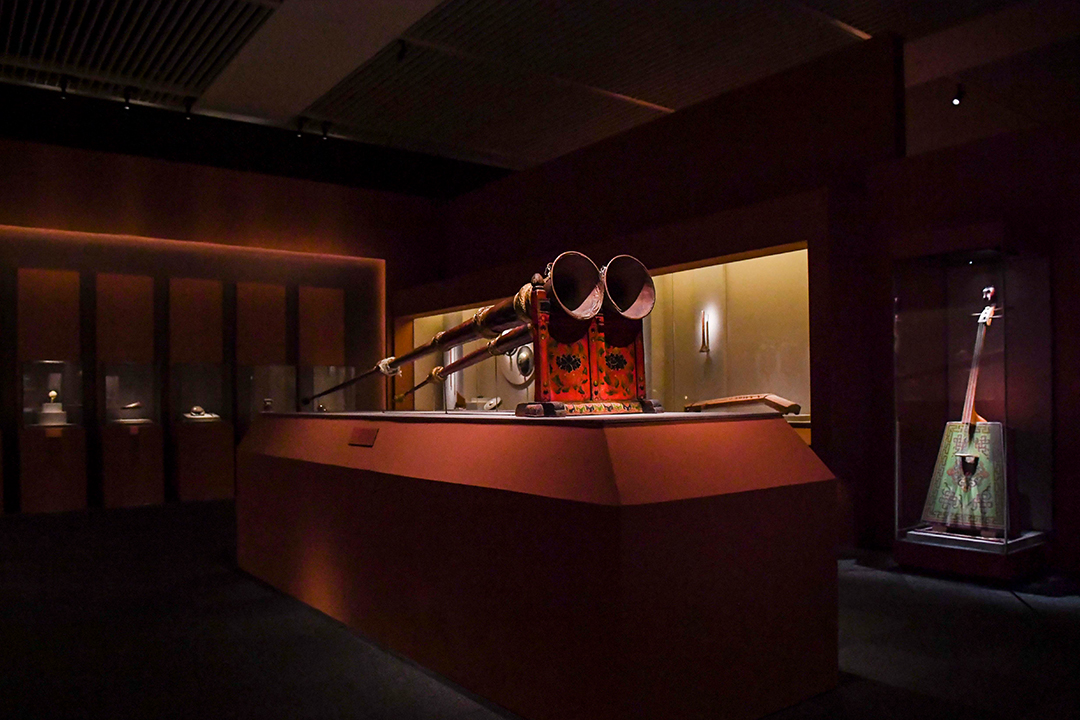

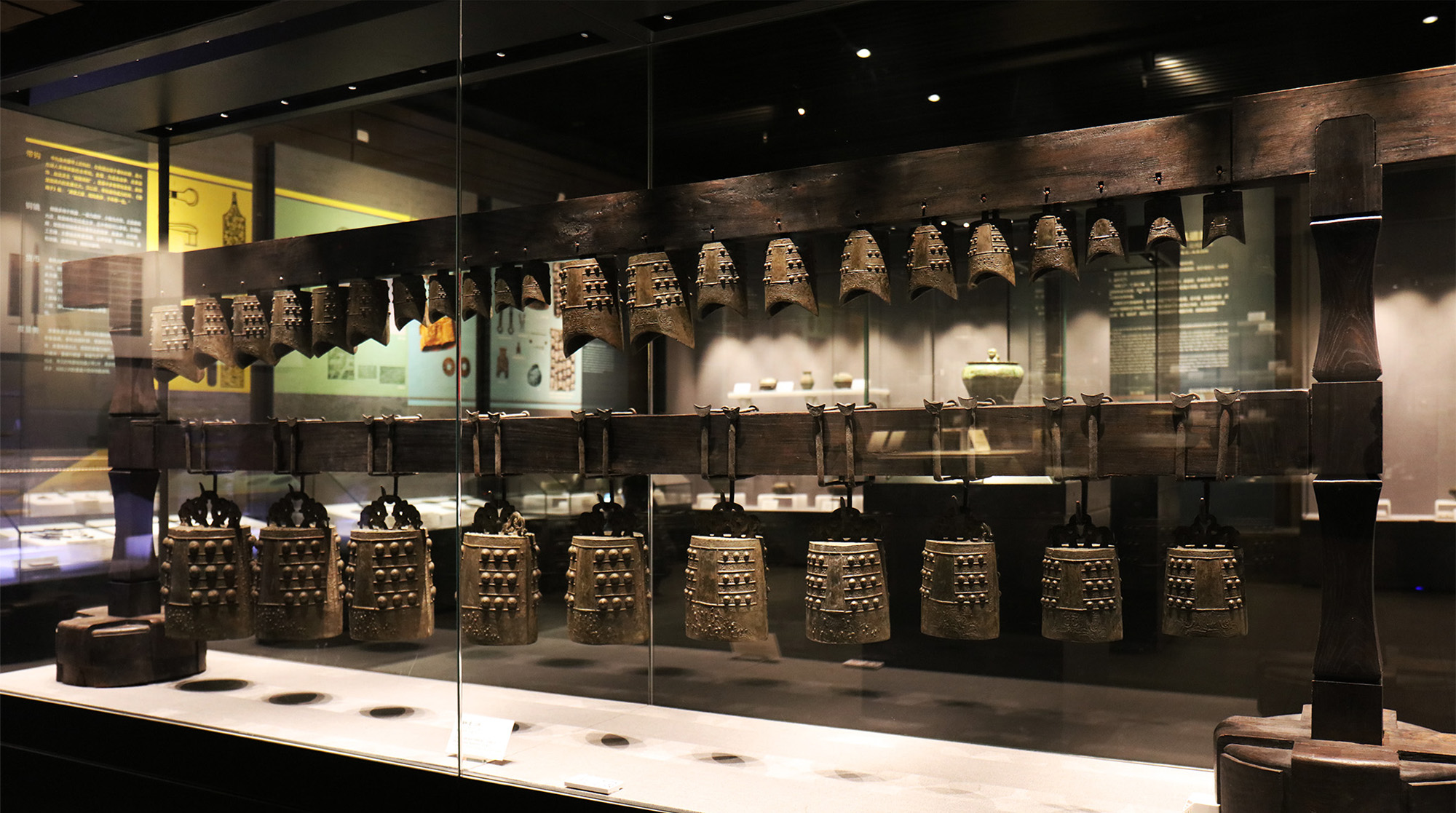

TLF2 series are multi-purpose museum gallery lighting fixtures, featuring dimmable, color temperature changeable, and zoomable to achieve precise light control, meeting the lighting requirements of any exhibit with a floor height of 3-6 meters.
TItem Number: TLF2-C20
Power Consumption: 20W
LED: 16.2W

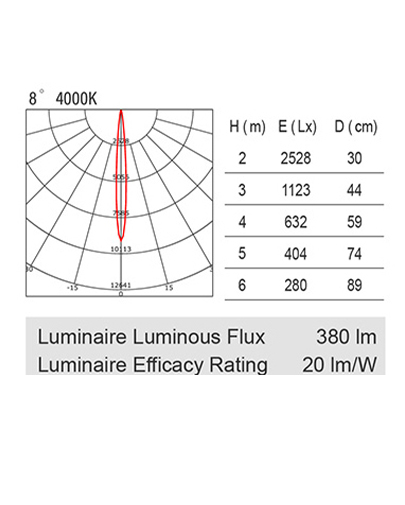

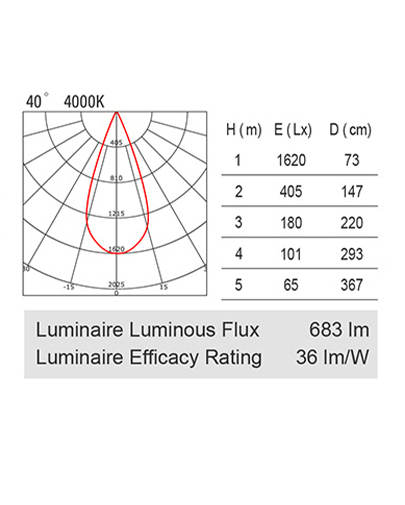

Luminous Flux: 683lm (Max.)
CRI: Ra>90 / Ra>95
Color Temperature: 3000K/3500K/4000K
Beam Angle: 8°~40° / 15°~55°
Dimming: 0-100%
Zoomable
1 Circuit or 3 Circuits Track
Horizontal Rotation
Pivotable through 325°
Dimmable
Dimming Mode
CRI>90 CRI>95
UGR<19

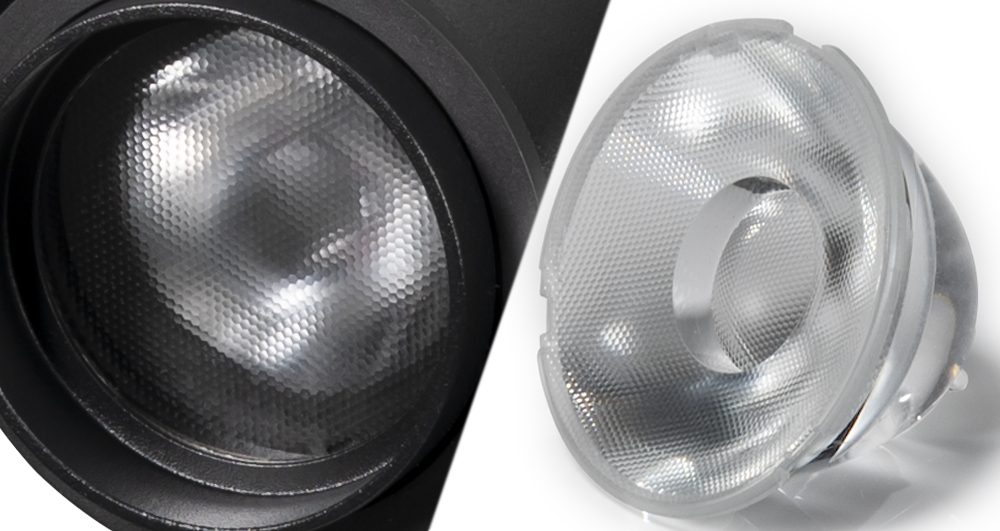

Efficient Optical Technology
Branded High Power LEDs
No Flickering
Housing Colors
Net Weight
IP20
CE
RoHS
Innovative optical and structural designs provide TLF2 spotlight applications from very narrow beams to wide beams. With different lenses, TLF2-C30 provides two different zoom ranges.

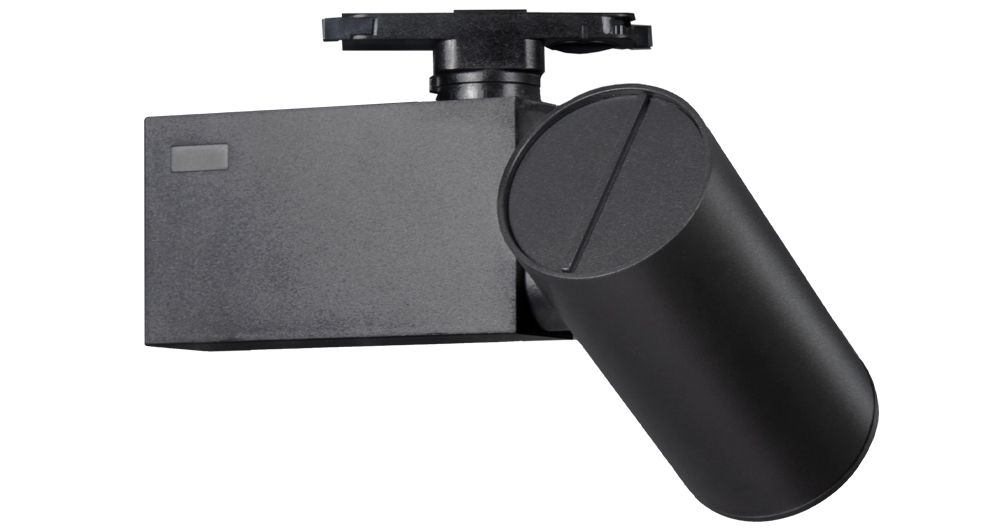

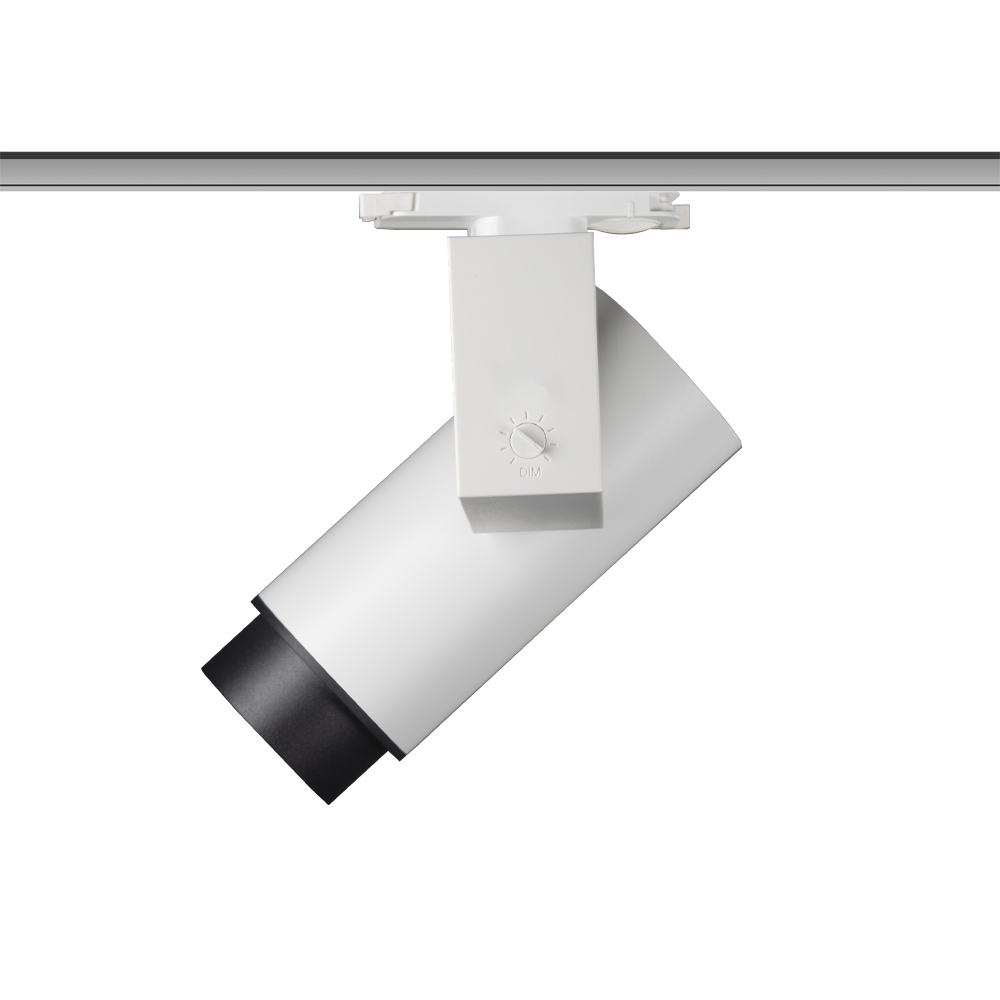

The dimming knob is consolidated on the back of the housing. The large knob makes it easy to have a precise light spot.

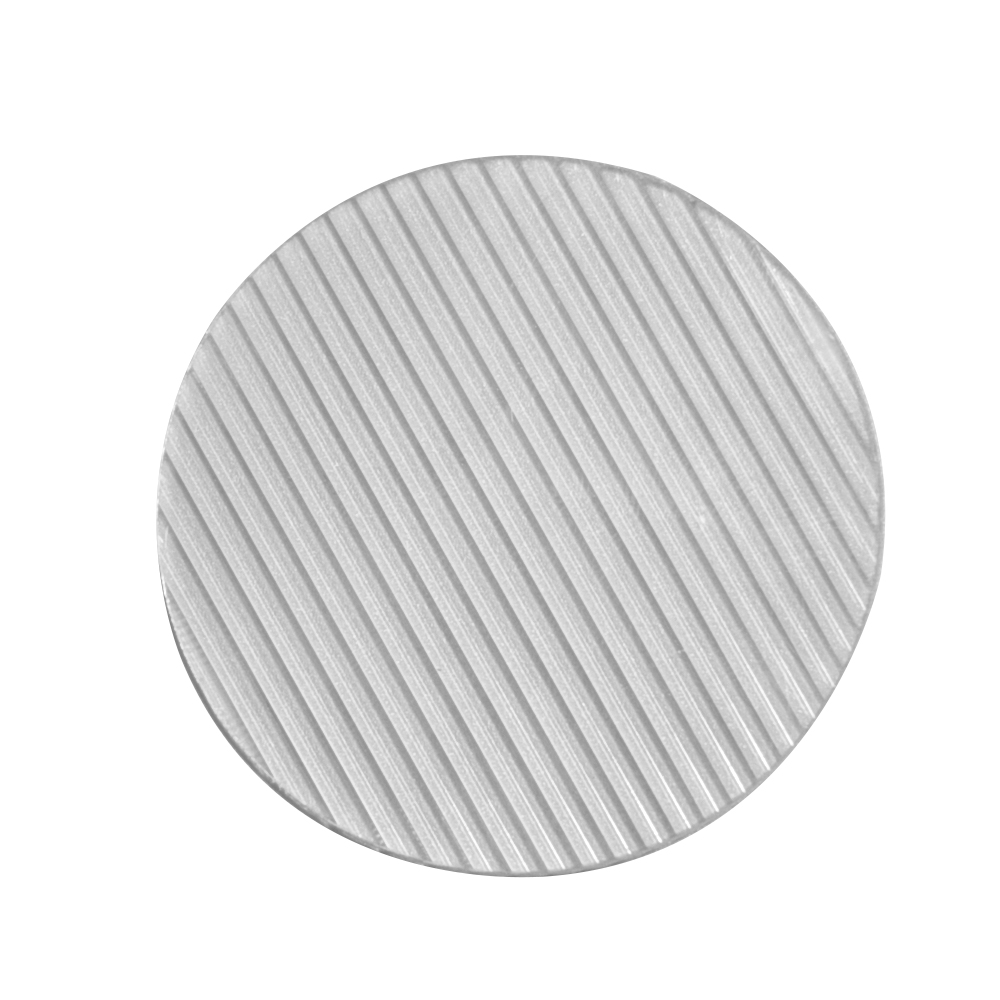

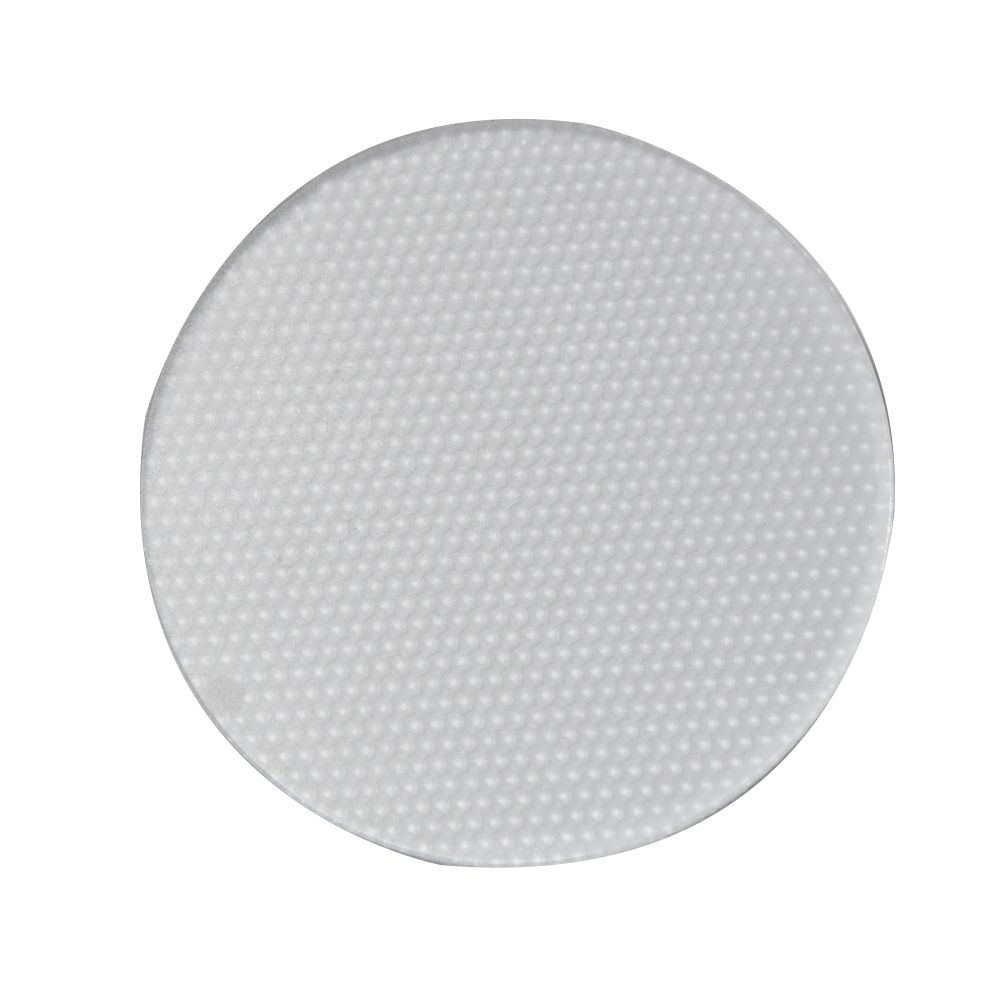

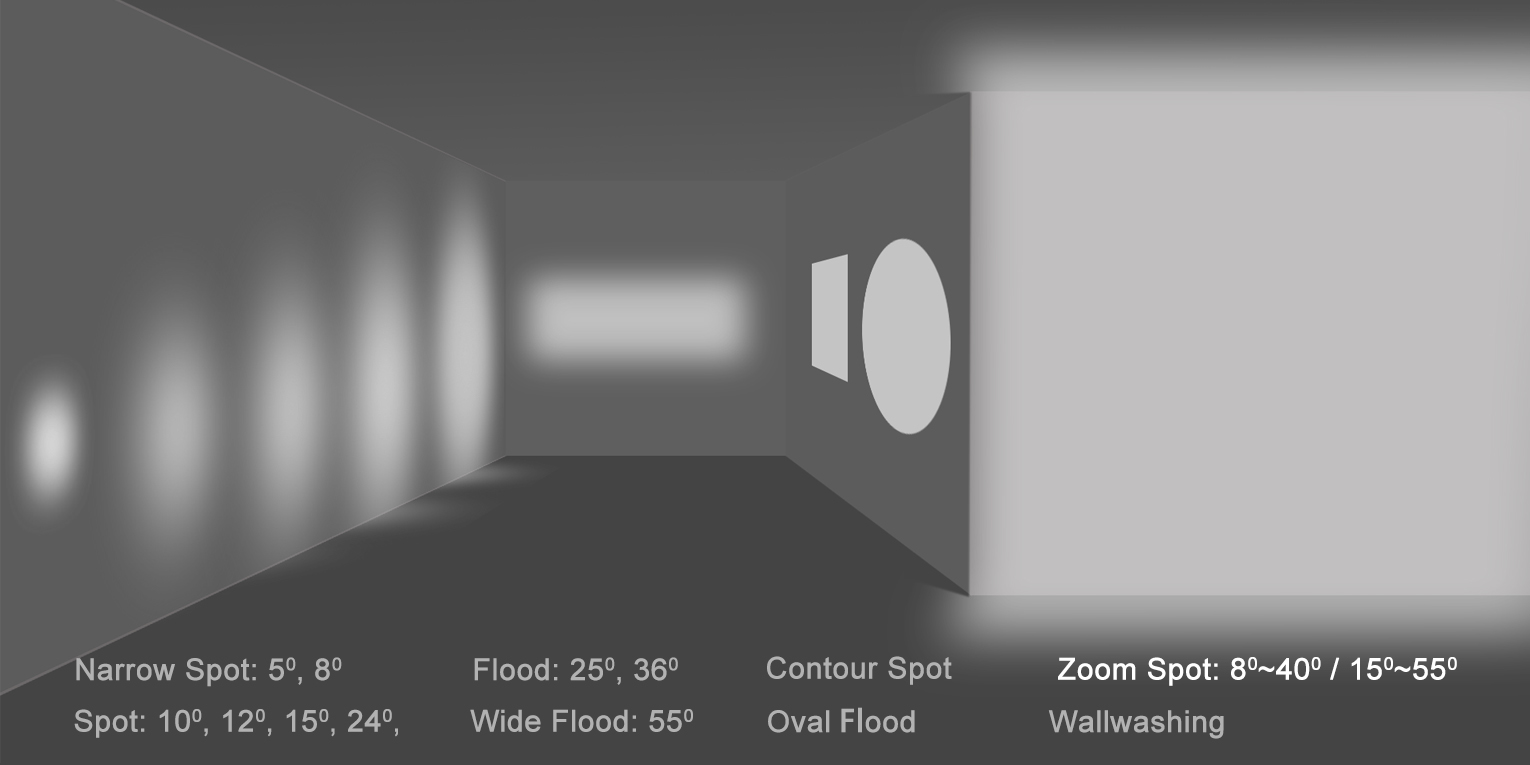

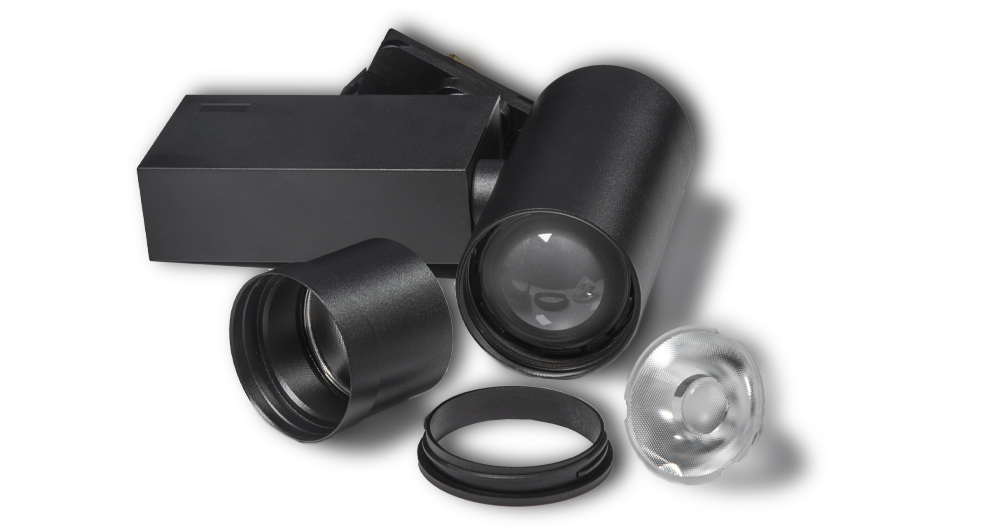

Interchangeable lens design and precise angle recognition instantly realize the perfect light-type conversion. Spotlights with multi-lens will greatly enrich the lighting mode and reduce the luminaire reserve while meeting the multiple needs of the exhibitions. The lens could be replaced/changed manually.
CRI could be higher than 95 to reflect the original vivid color of the exhibits. The light is soft but extremely consistent and penetrating to reproduce the saturated colors. The spotlight is excellent for all kinds of colors, presenting you with richer, more natural colors and sharper details.

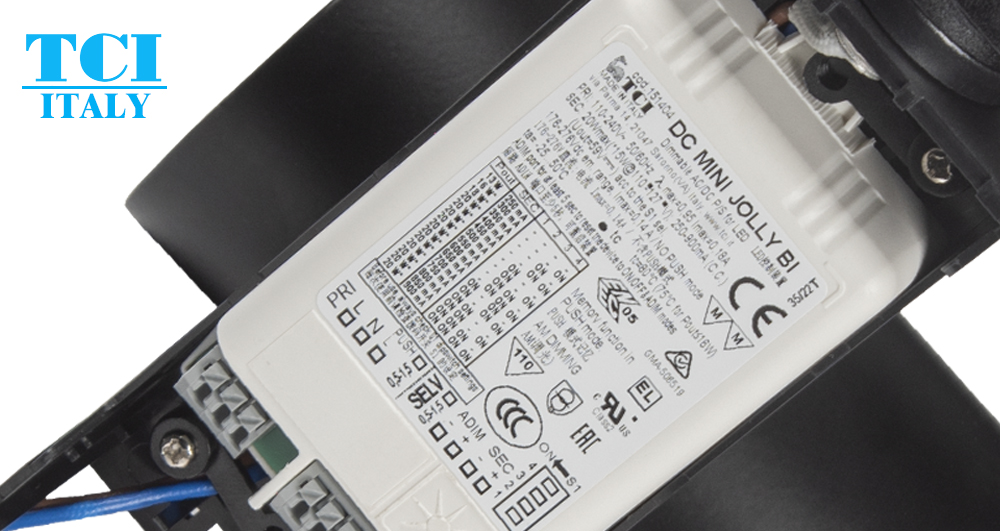

Minar spotlights apply the original TCI driver to ensure superior performance and stability for museum lighting.
The driver and LED modules are placed in different cabinets to ensure their heat dissipation does not interfere with each other. This structure ensures the stability of the driver, thus further improving the overall luminous efficiency and extending the overall life of the spotlight.

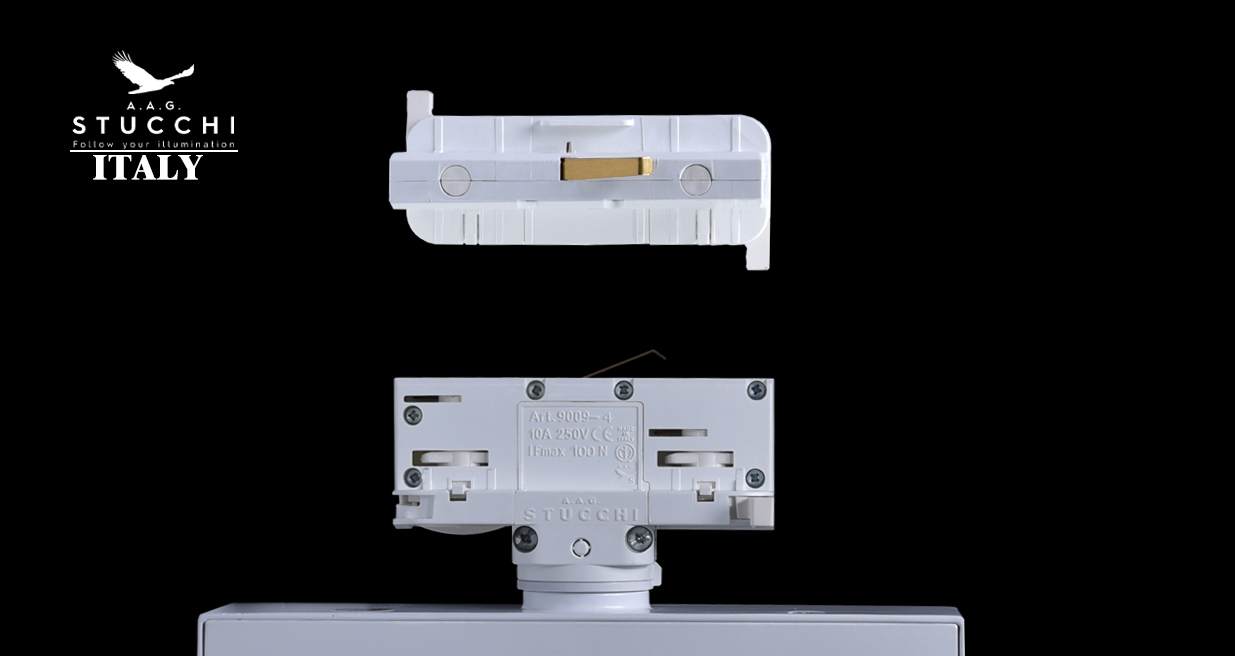

Track Adapter: Stucchi
Original Stucchi track adapter:
1. Two pieces of the lever of the cam at each side of the adapter for better lockup of the spotlight on the track.
2. Maximum bearing: 5.0kgs

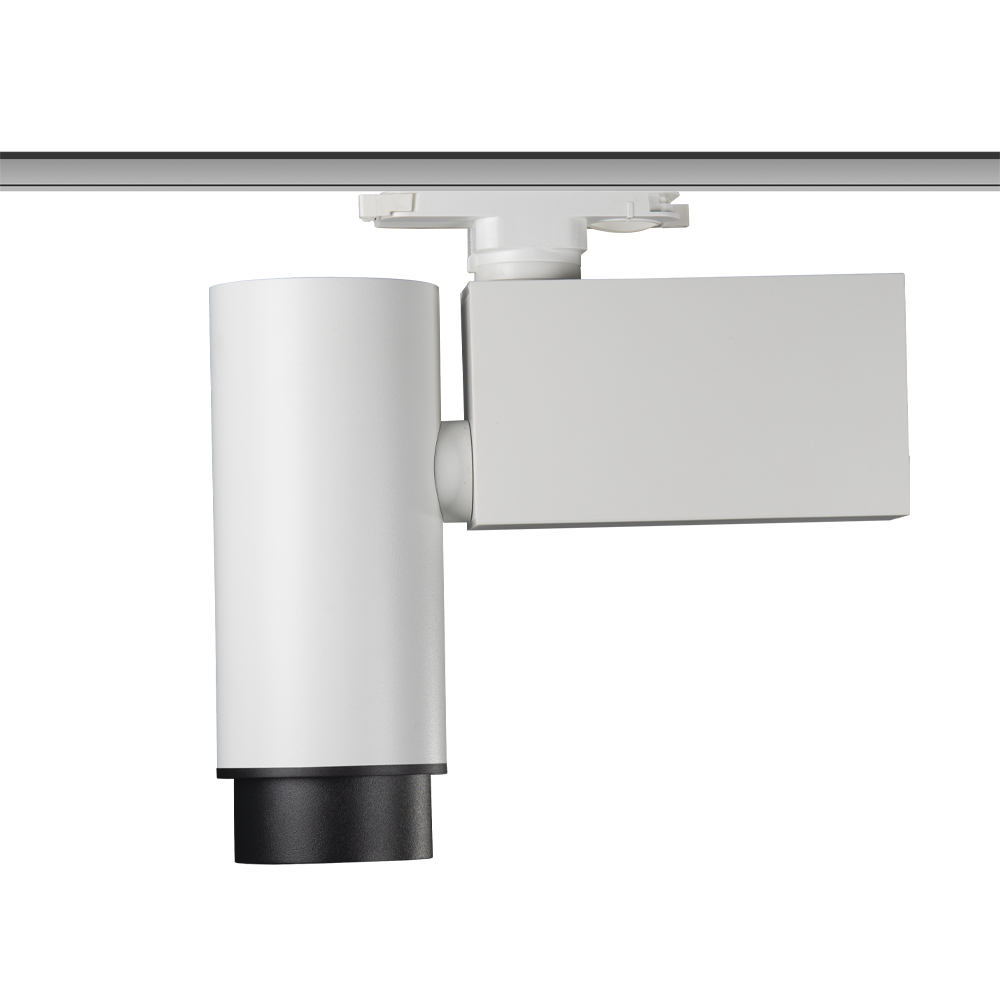

Zoomable Track Spotlight
| Model | TLF2-C20 |
| Input Voltage | 100~240V AC |
| Power | 20W |
| LED Power | 16.2W |
| CRI | Ra>90 / Ra>95 |
| Color Temperature | 3000K/3500K/4000K |
| Power Factor | >0.9 |
| Dimming Range | 0~100% |
| Beam Angle | 80~400 / 150~550 |
| Material | Aluminum, powder-coated |
| Housing Color | White / Black |

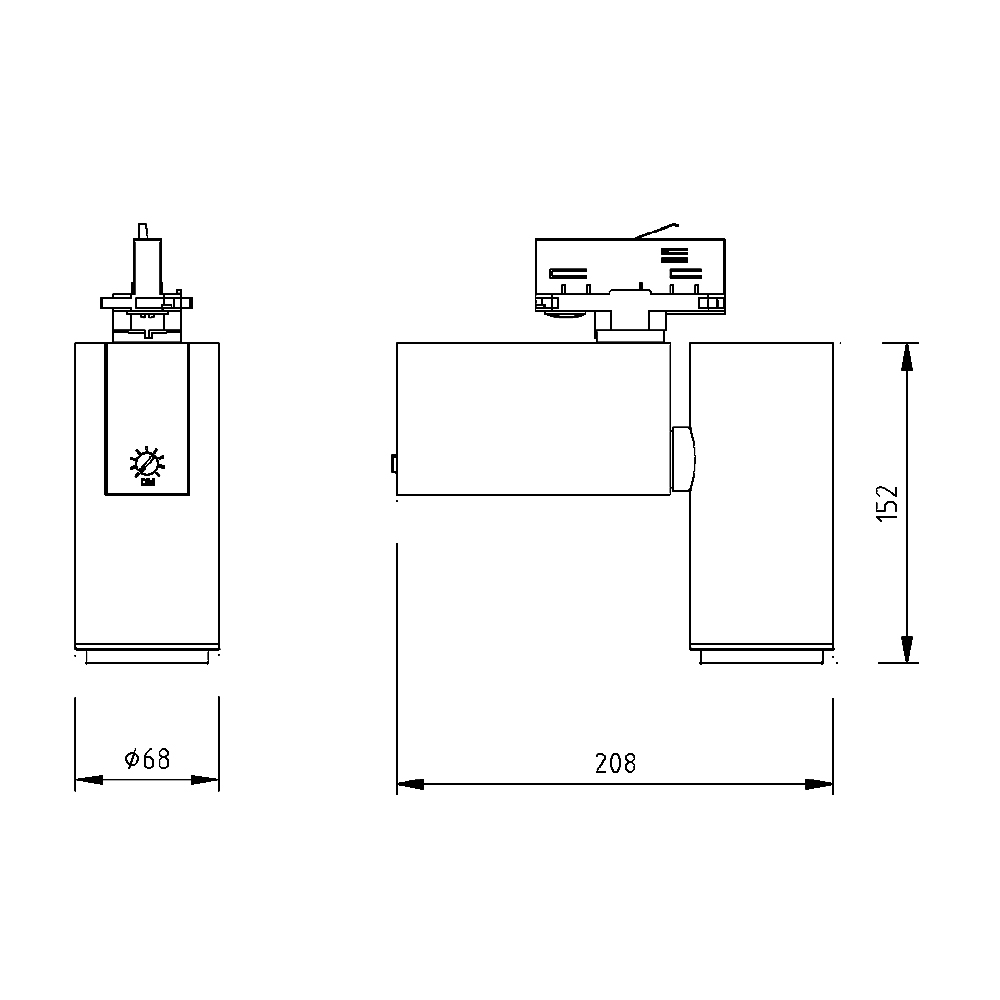

| Dimension | L208 X W152 X H68mm |
| Net Weight | 0.8kgs |
