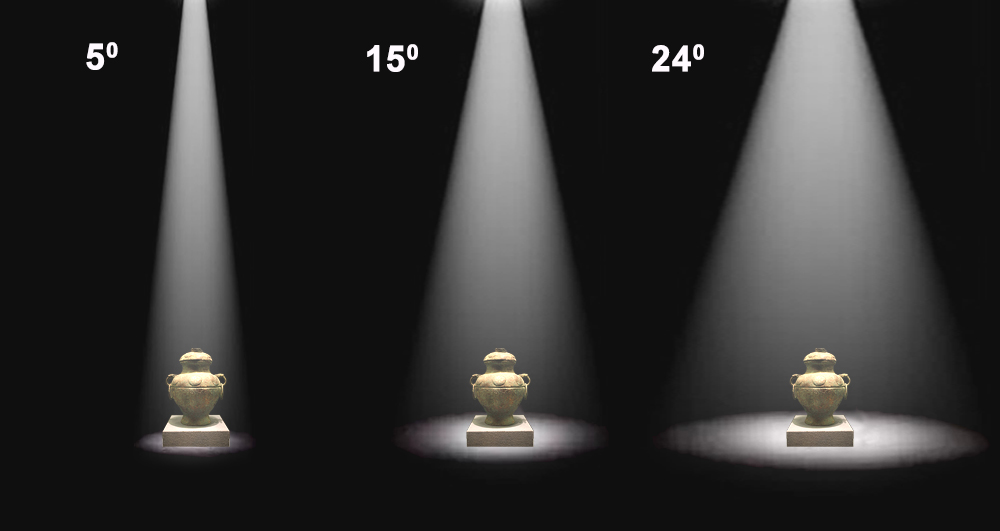

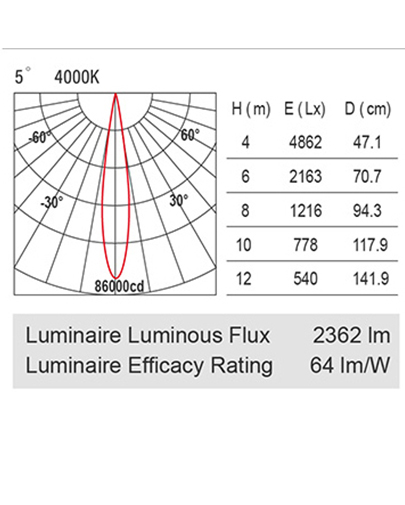

Narrow Beam Angle: 5 Degree

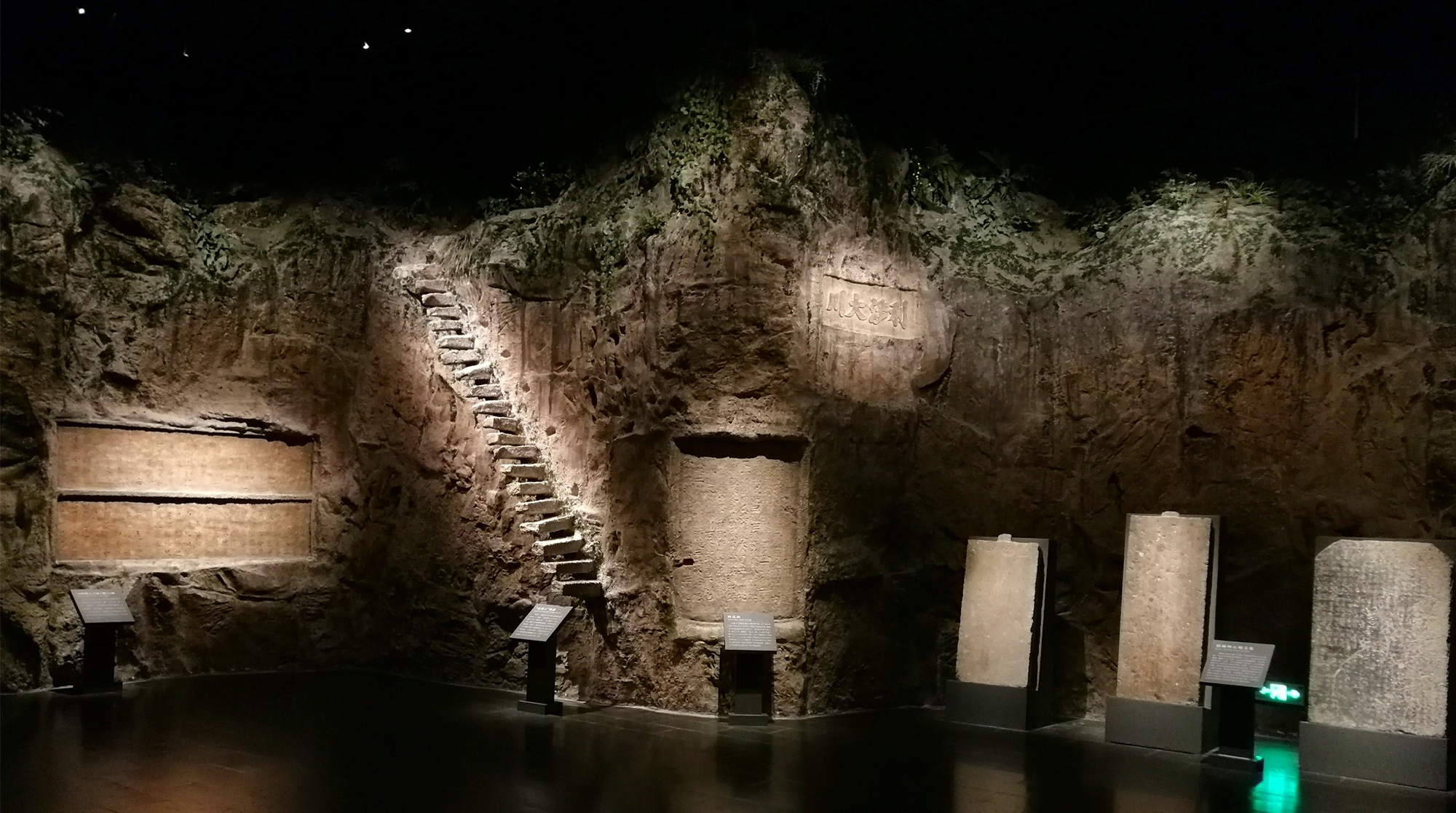

Innovative optical and structural designs provide spotlight applications from very narrow beams to wide beams. The beam angle of 5-degree enables the spotlight to illuminate the exhibits from a distance of 5-12 meters.

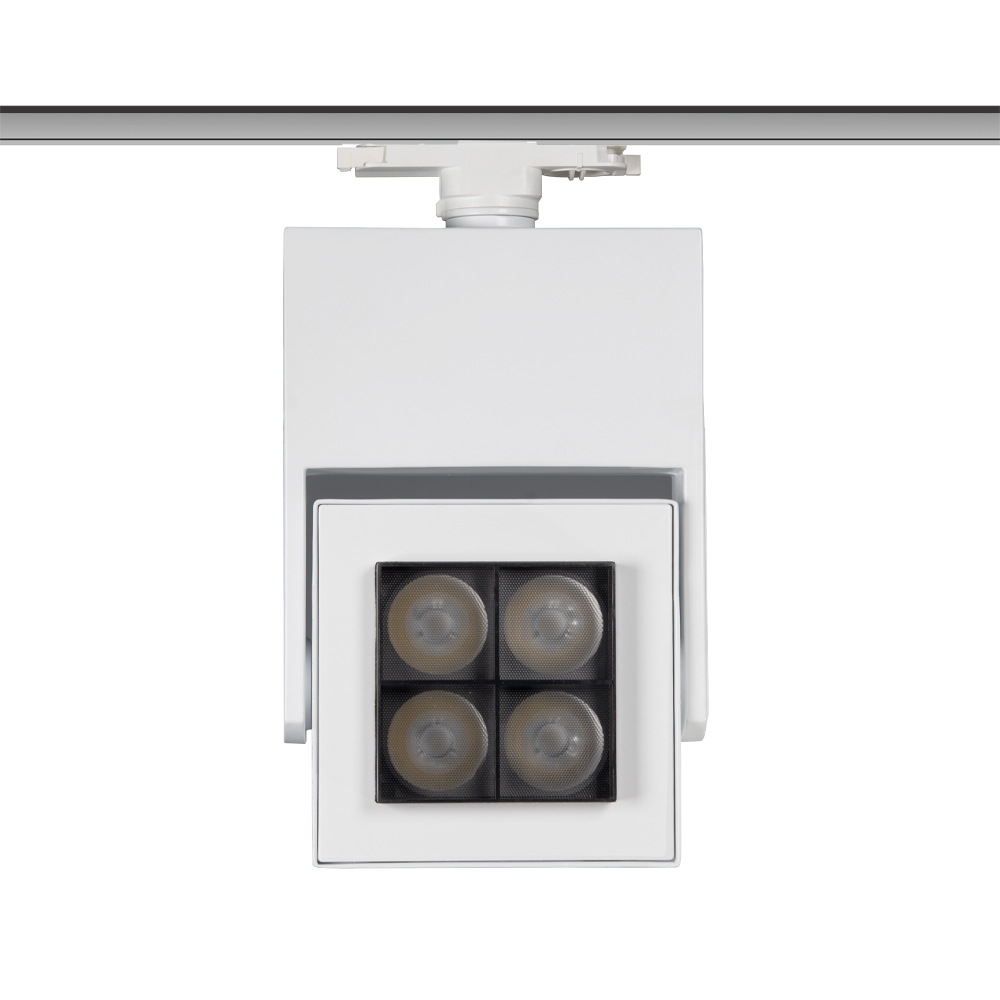

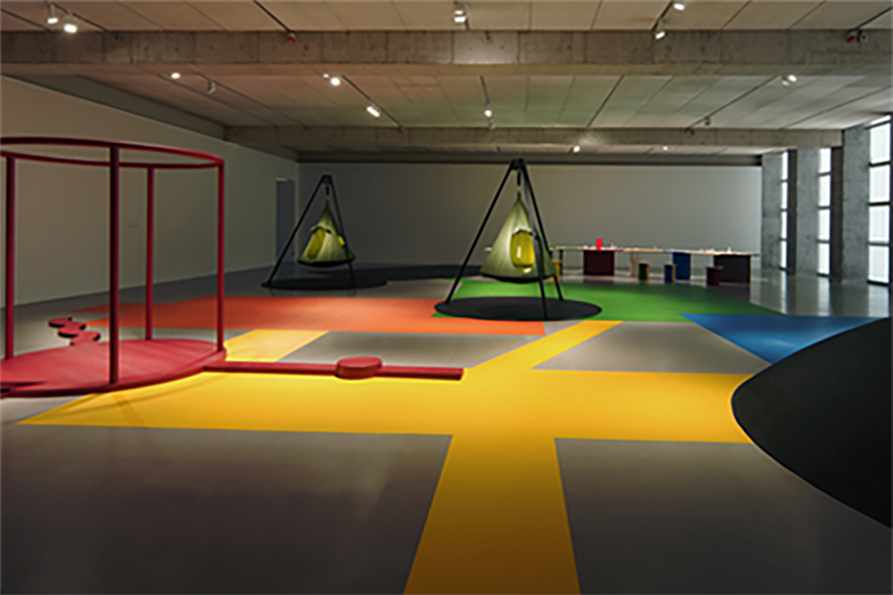

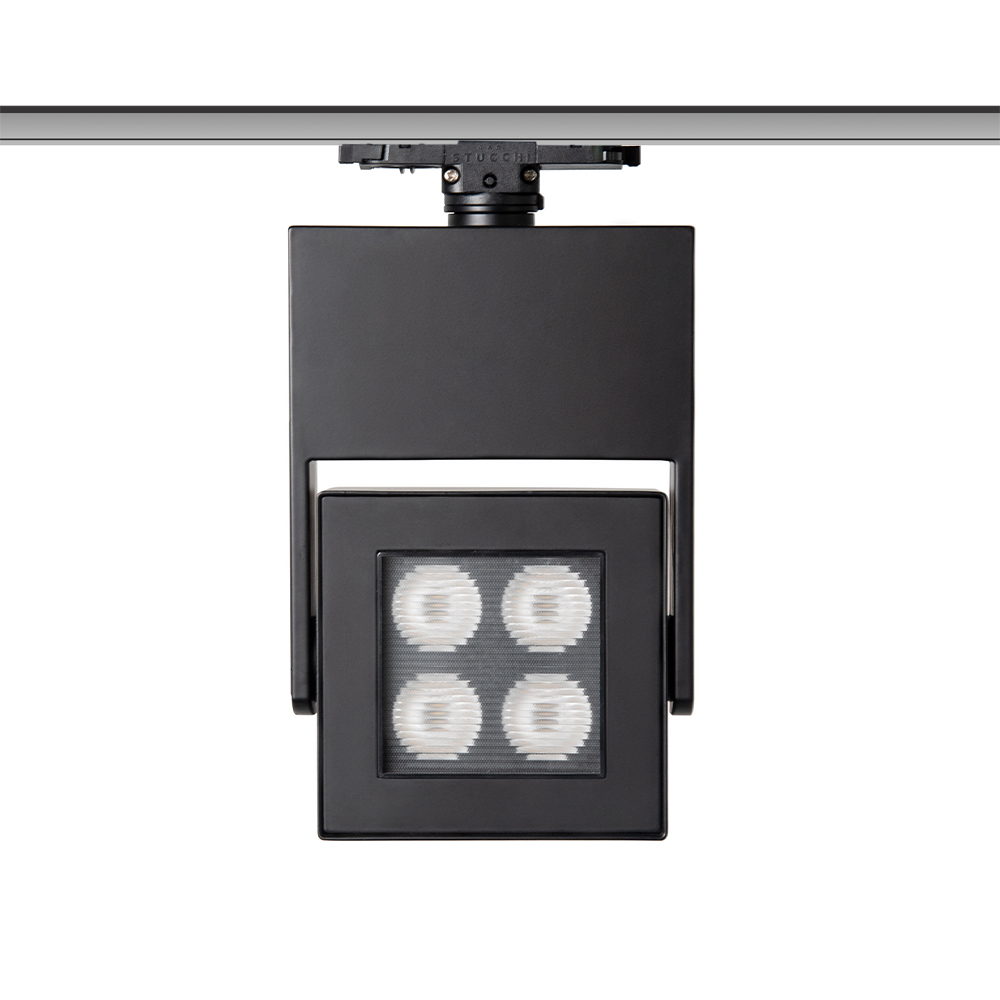

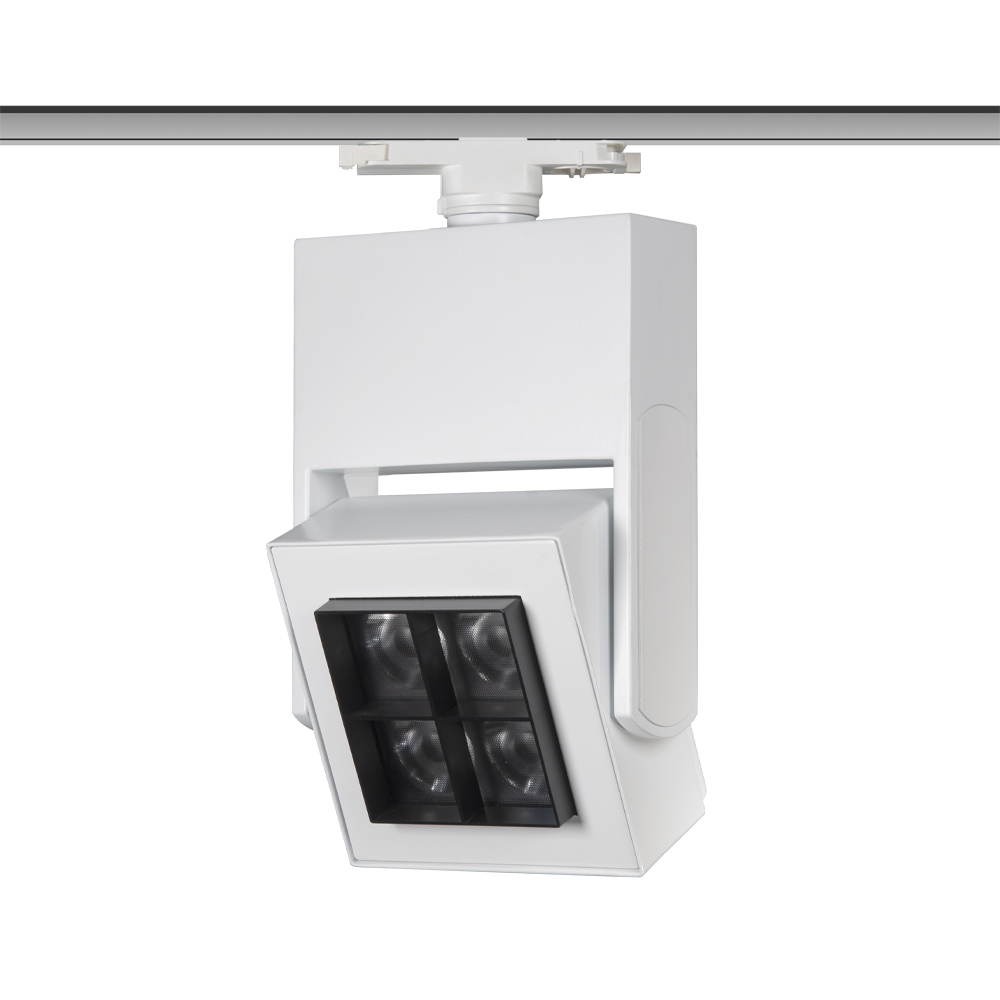

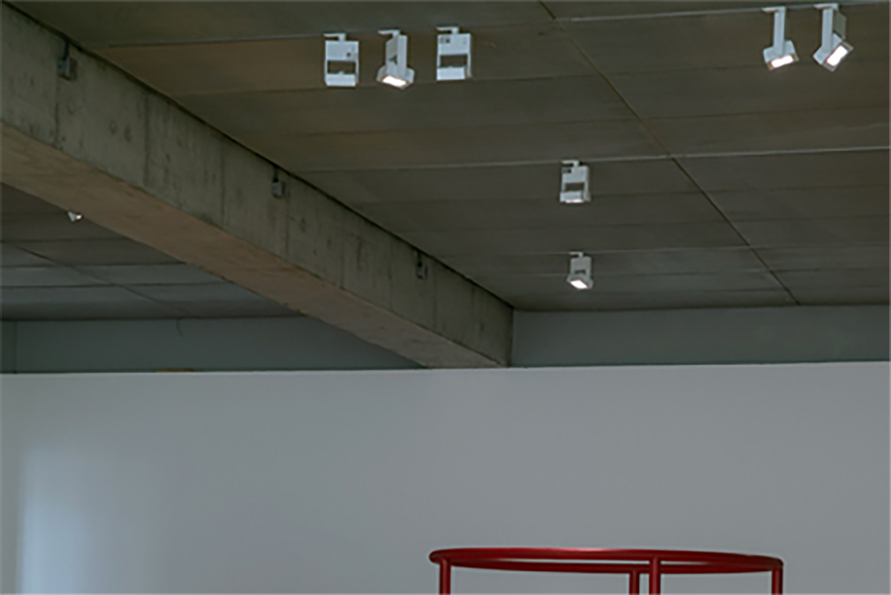

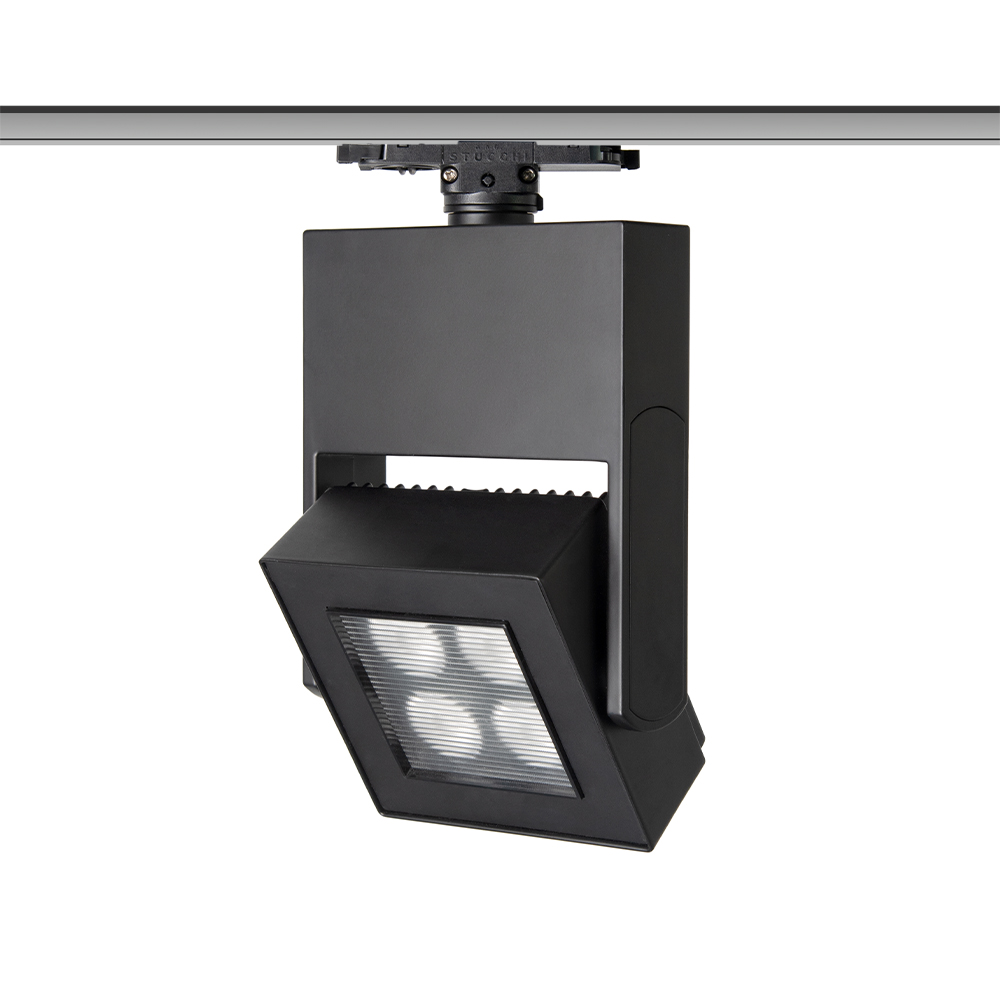

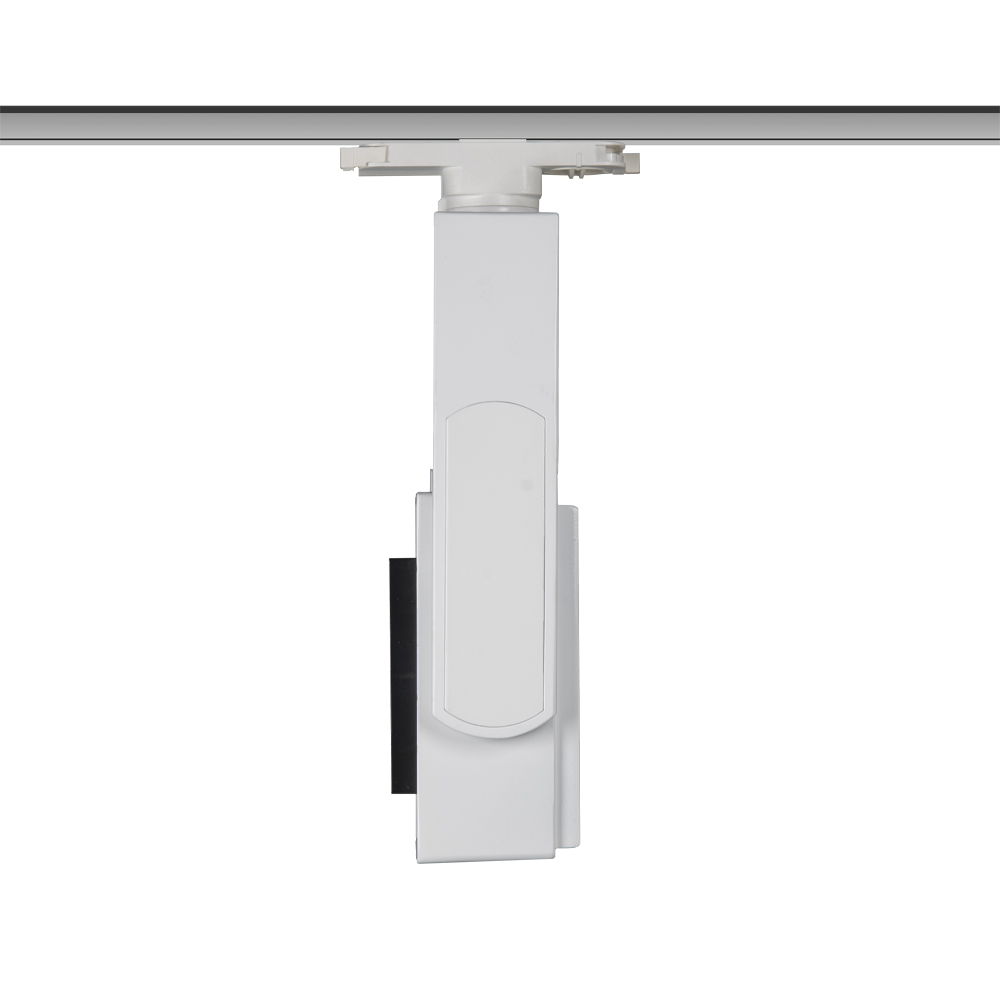

TLS1-D40 Is a powerful professional lighting fixture for museums and galleries. Its light spot can be changed by replacing a different lens. The minimum beam angle of 5 degrees is suitable for the lighting of exhibits in large spaces with a floor height of 5-12 meters.
Item Number: TLS1-D40
Power Consumption: 40W
LED: 31.2W
Luminous Flux: 2621lm (Max.)
CRI: Ra>90
Color Temperature: 3000K/3500K/4000K

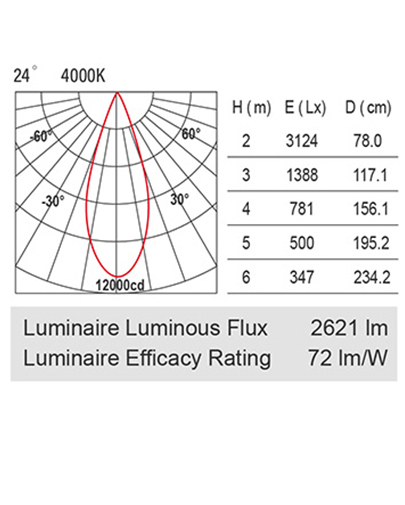

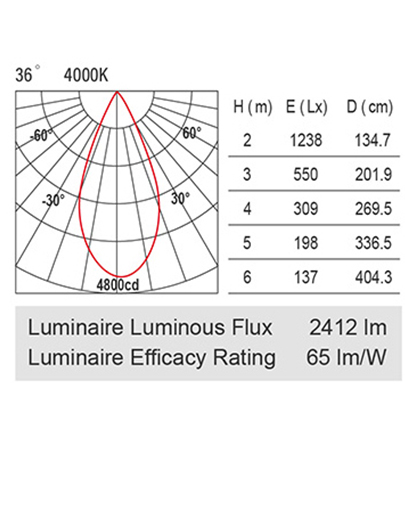

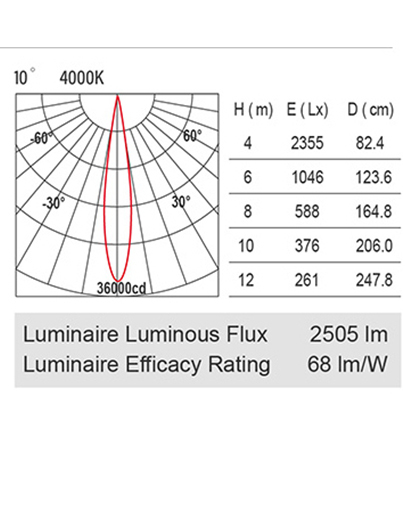

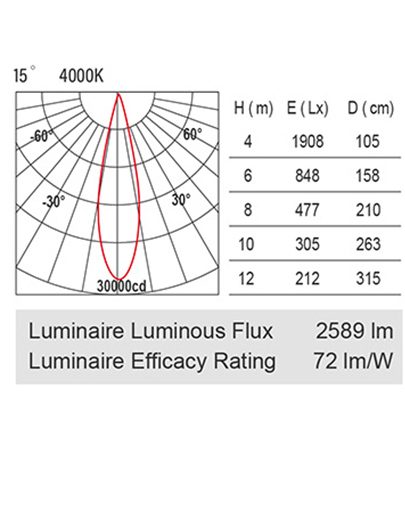

Beam Angle: 5°, 10°, 15°, 24°, 36°
Dimming: 0-100%
1 Circuit or 3 Circuits Track
Horizontal Rotation
Pivotable through 325°
Dimmable
Dimming Mode (Manual)
CRI>90
Multi-Light Distributions
UGR<19
Efficient Optical Technology
Branded High Power LEDs
CE
RoHS
Housing Colors
Net Weight
IP20
Innovative optical and structural designs provide spotlight applications from very narrow beams to wide beams. The beam angle of 5-degree enables the spotlight to illuminate the exhibits from a distance of 5-12 meters.

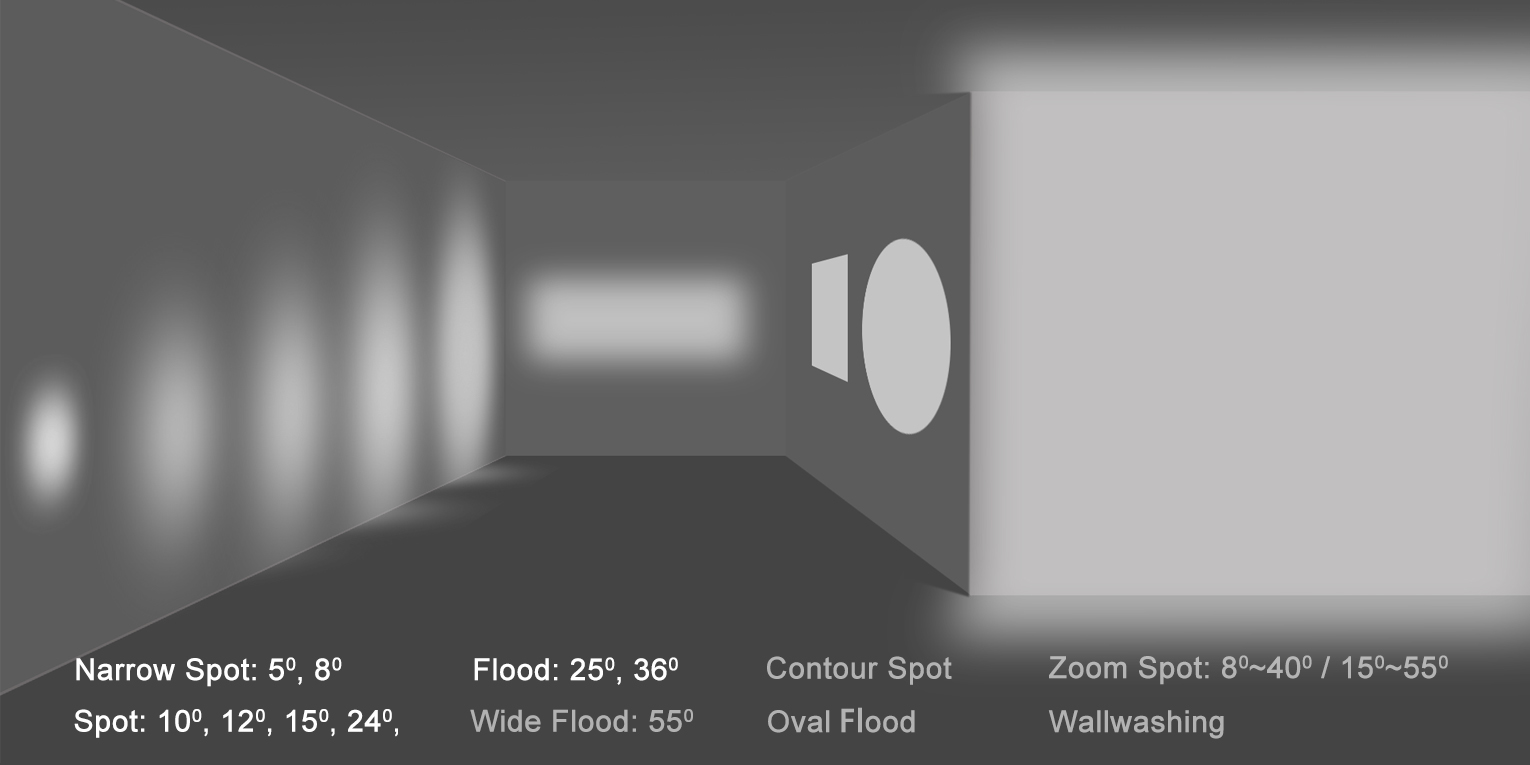

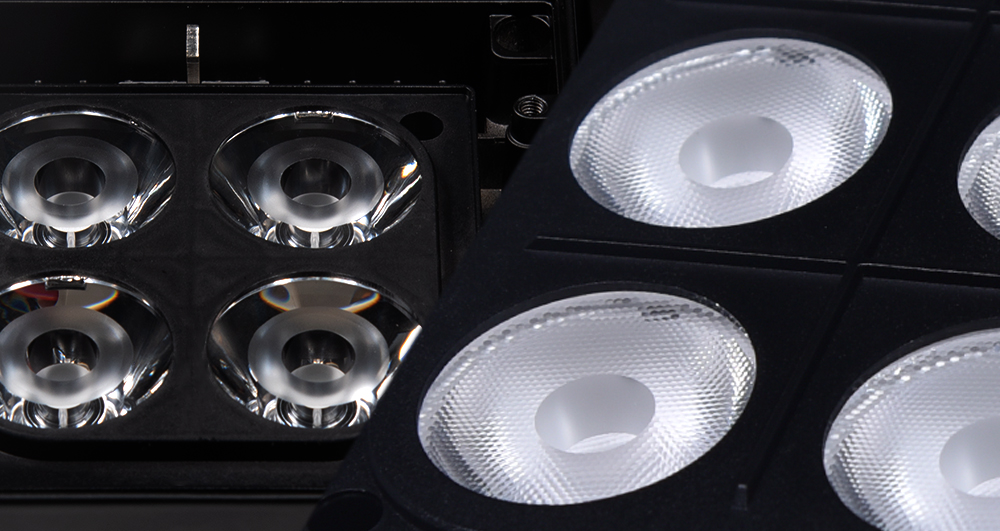

Interchangeable lens design and precise angle recognition instantly realize the perfect light-type conversion. Spotlights with multi-lens will greatly enrich the lighting mode and reduce the luminaire reserve while meeting the multiple needs of the exhibitions.

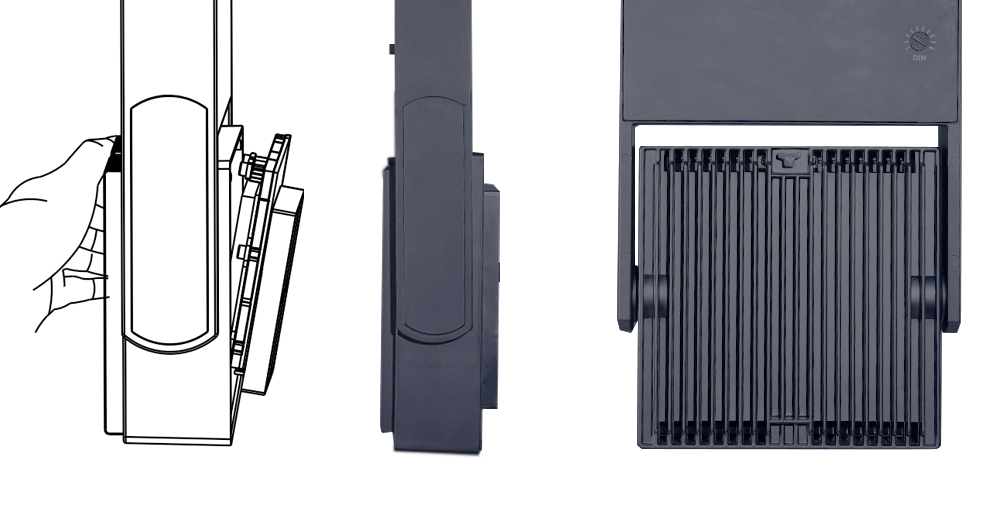

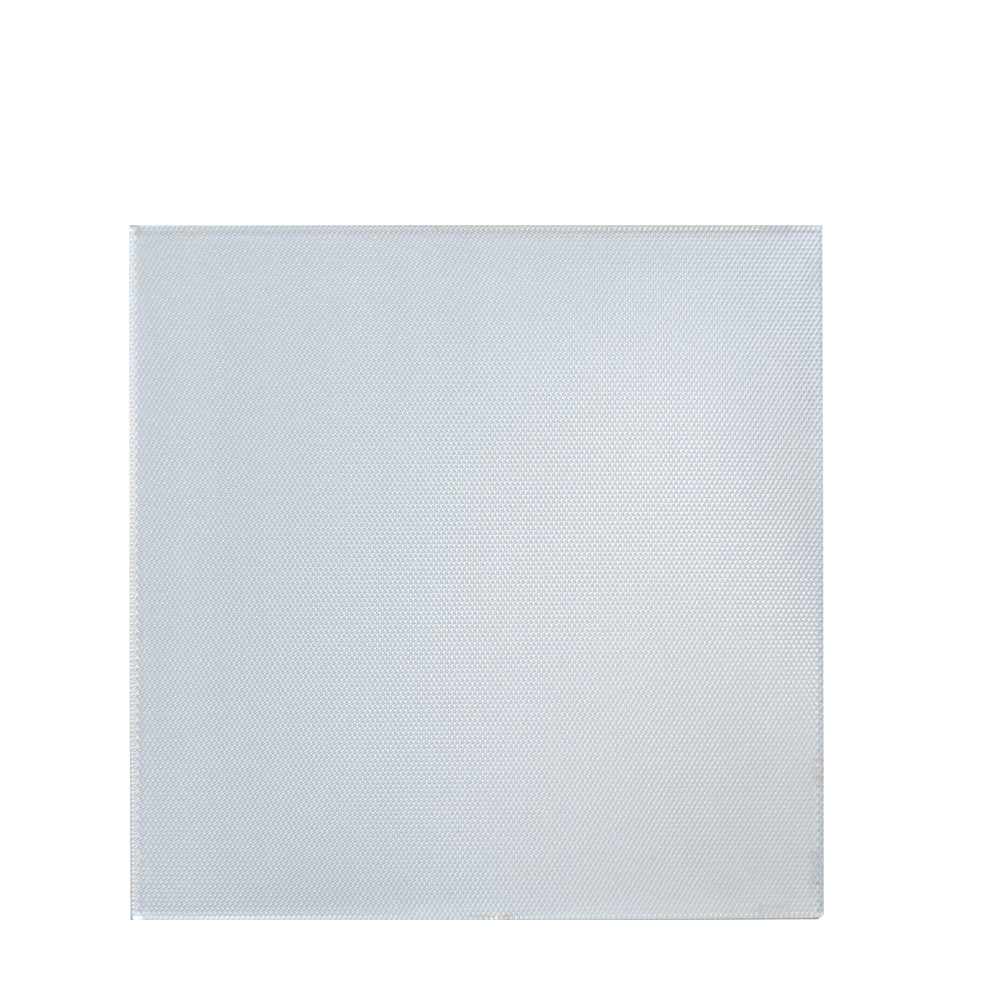

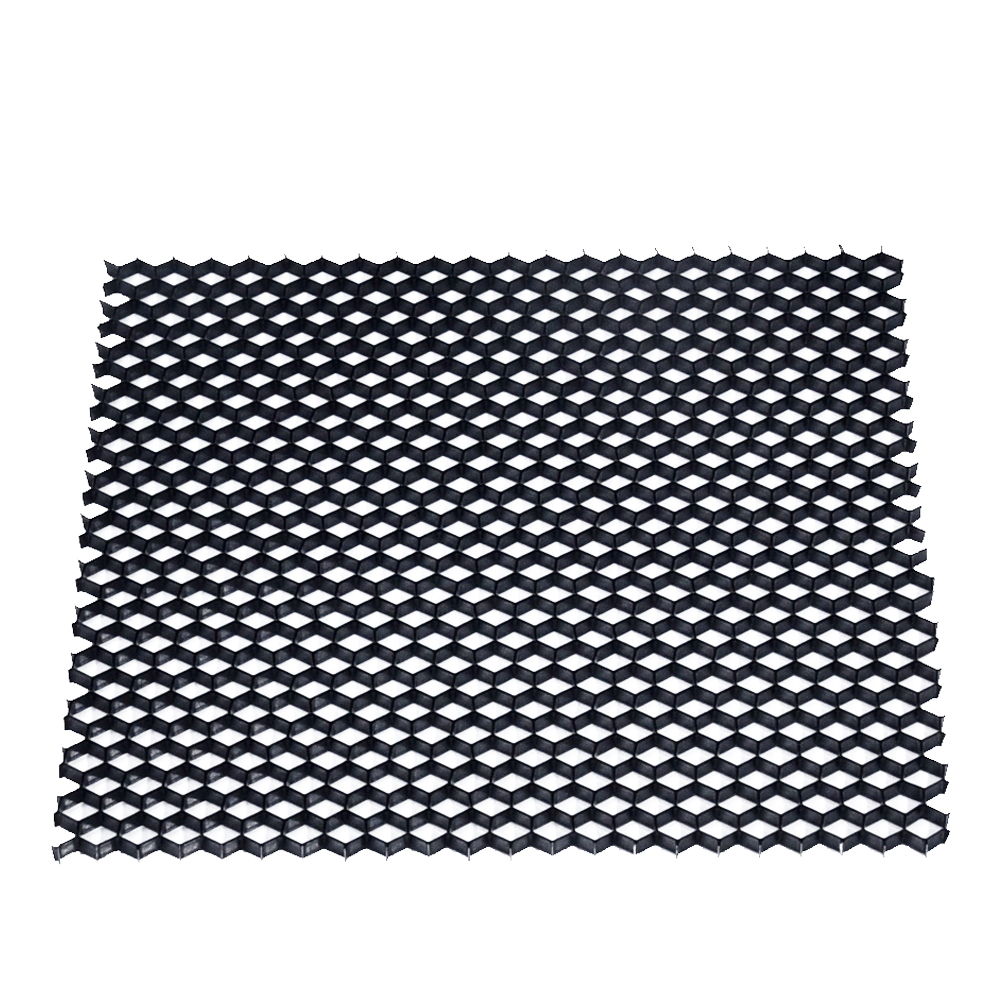

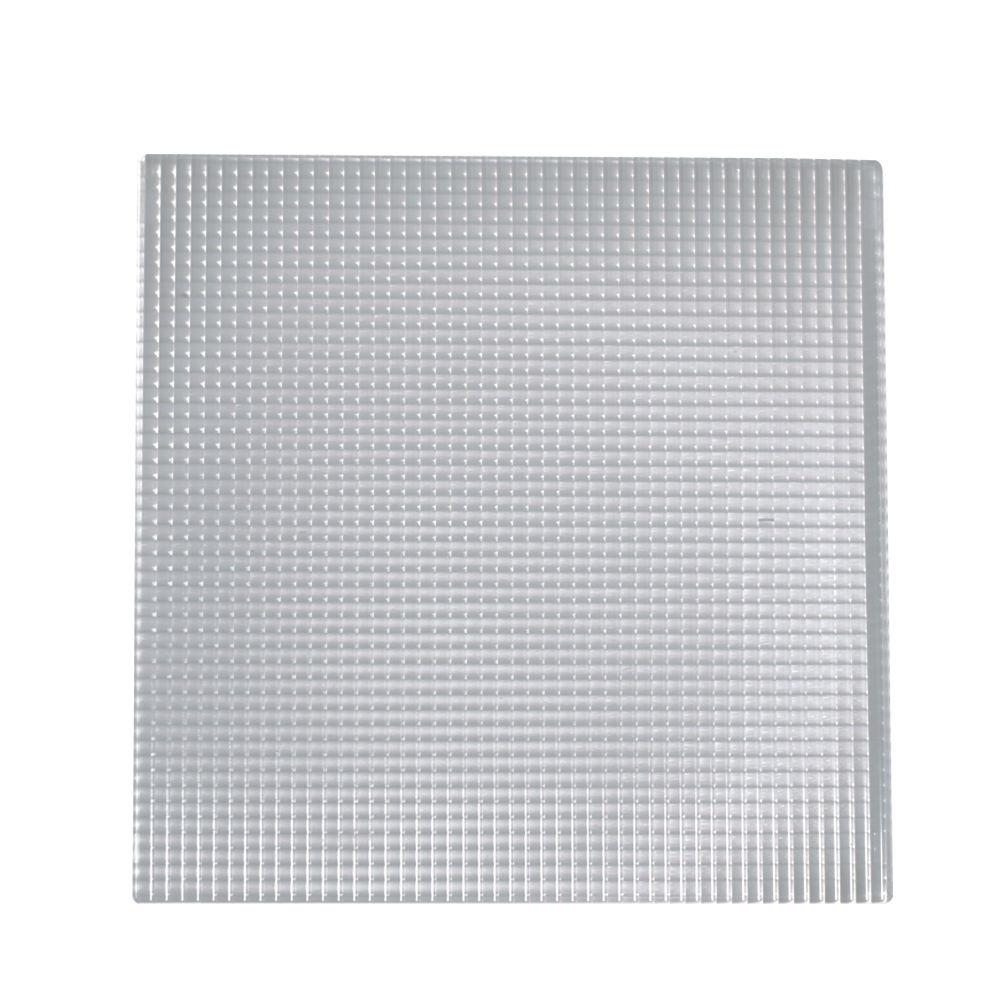

Optical accessories available: diffusers, stretchers, anti-glare (honeycomb) grills. Press the quick switch by hand at the back of the spotlight to pop open the cover face to change the lens, the filters, and anti-glare grills as needed.

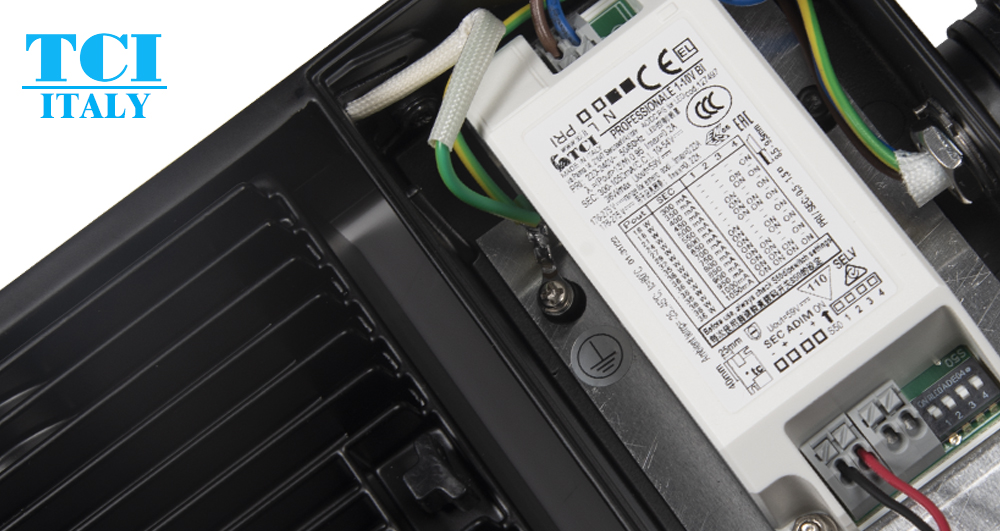

Minar spotlights apply the original TCI driver to ensure superior performance and stability for museum lighting.
The driver and LED modules are placed in different cabinets to ensure their heat dissipation does not interfere with each other. This structure ensures the stability of the driver, thus further improving the overall luminous efficiency and extending the overall life of the spotlight.

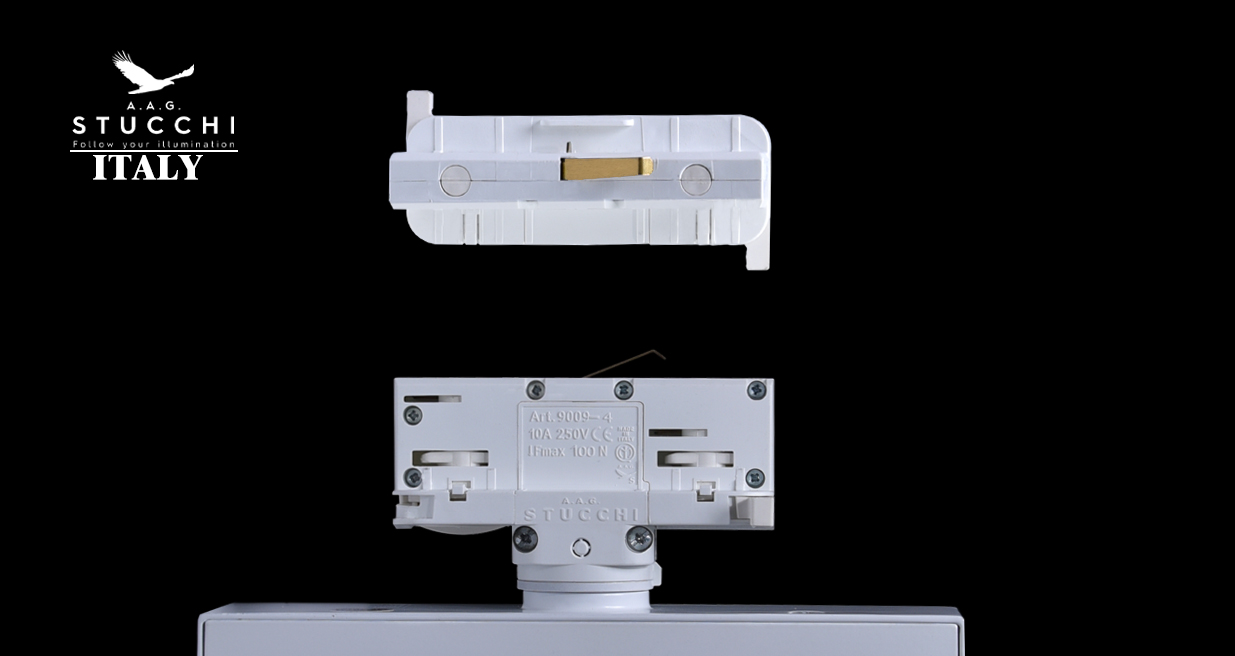

Track Adapter: Stucchi
Original Stucchi track adapter:
1. Two pieces of the lever of the cam at each side of the adapter for better lockup of the spotlight on the track.
2. Maximum bearing: 5.0kgs
Track Spotlight
| Model | TLS1-D40 |
| Input Voltage | 100~240V AC |
| Power | 40W |
| LED Power | 31.2W |
| CRI | Ra>90 |
| Color Temperature | 3000K/3500K/4000K |
| Power Factor | >0.9 |
| Dimming Range | 0~100% |
| Beam Angle | 50/100/150/240/360 |
| Material | Cast Aluminum, powder-coated |
| Housing Color | White / Black |

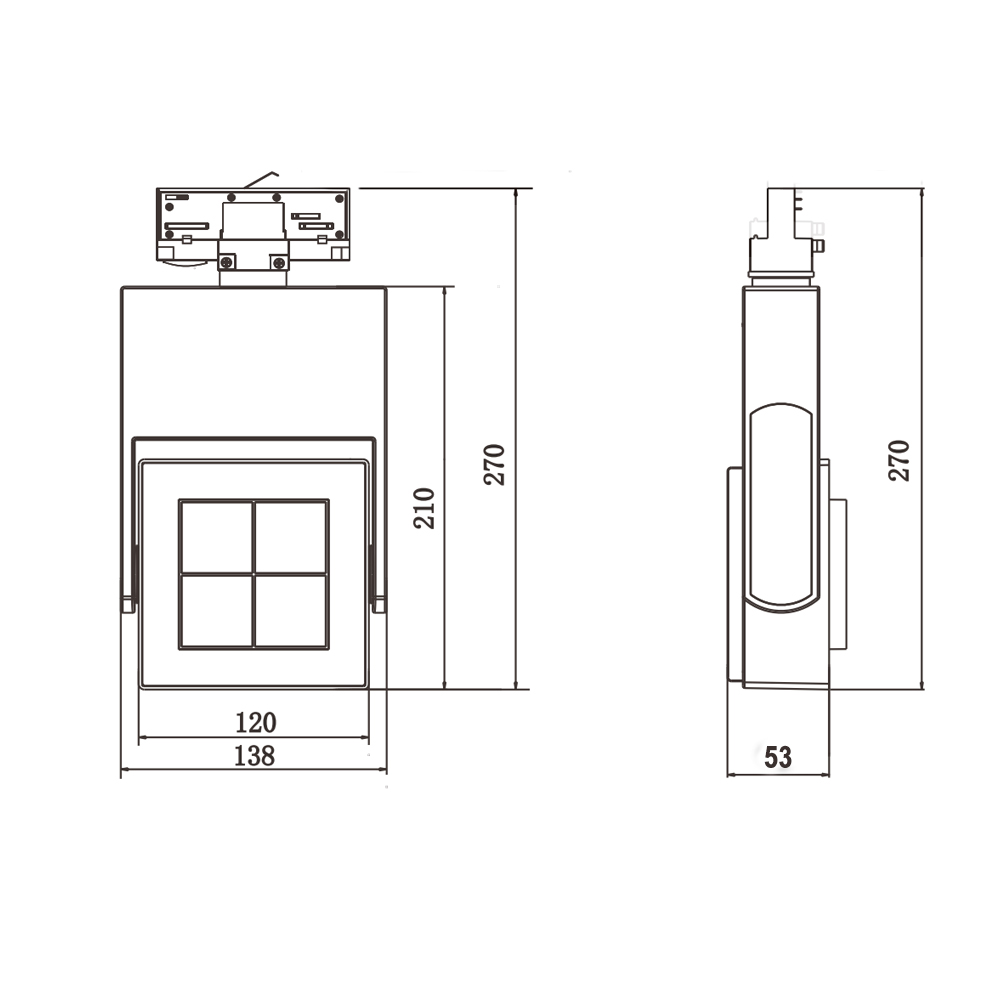

| Dimension | L270 X W138 X H62 mm |
| Net Weight | 1.3kgs |
